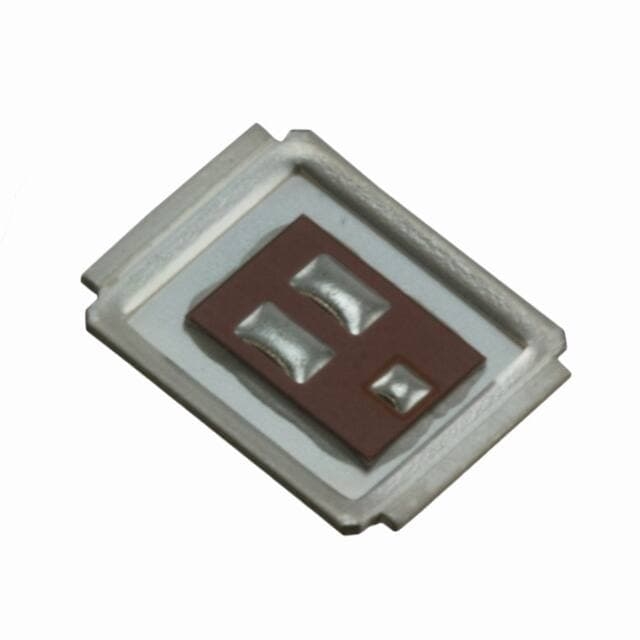

INFINEON IRF6727MTRPBF
INFINEON IRF6727MTRPBF

INFINEON IRF6727MTRPBF

Manufacturer No:

IRF6727MTRPBF

Manufacturer:

INFINEON

Package:

DirectFET? Isometric MX

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 1.7m ? @ 32A, 10V ±20V 6190pF @ 15V 74nC @ 4.5V DirectFET? Isometric MX

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRF6727MTRPBF information

INFINEON IRF6727MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRF6727MTRPBF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DirectFET? Isometric MX
  • Number of Pins
  • 5
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • HEXFET®
  • Published
  • 2009
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Subcategory
  • FET General Purpose Power
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • BOTTOM
  • JESD-30 Code
  • R-XBCC-N3
  • Number of Elements
  • 1
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Power Dissipation-Max
  • 2.8W Ta 89W Tc
  • Operating Mode
  • ENHANCEMENT MODE
  • Case Connection
  • DRAIN
  • Turn On Delay Time
  • 21 ns
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 1.7m ? @ 32A, 10V
  • Vgs(th) (Max) @ Id
  • 2.35V @ 100?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 6190pF @ 15V
  • Current - Continuous Drain (Id) @ 25°C
  • 32A Ta 180A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 74nC @ 4.5V
  • Rise Time
  • 31ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 4.5V 10V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 16 ns
  • Turn-Off Delay Time
  • 24 ns
  • Continuous Drain Current (ID)
  • 32A
  • Threshold Voltage
  • 1.8V
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • 30V
  • Pulsed Drain Current-Max (IDM)
  • 260A
  • Height
  • 508?m
  • Length
  • 6.35mm
  • Width
  • 5.0546mm
  • REACH SVHC
  • No SVHC

Download datasheets and manufacturer documentation for INFINEON IRF6727MTRPBF.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

IRF6727MTRPBF Description

IRF6727MTRPB 30V Single N-Channel StrongIRFET? Power MOSFET and Schottky Diode in a DirectFET? MT package.

The IRF6727MTRPBF power MOSFET has been designed with a low RDS(on) and high current capacity in mind. IRF6727MTRPBF are designed for low-frequency applications that require high performance and durability. DC motors, battery management systems, inverters, and DC-DC converters are among the applications covered by the comprehensive portfolio.


IRF6727MTRPBF Features

  • RoHS Compliant and Halogen Free

  • Low Profile (<0.7 mm)

  • Dual Sided Cooling Compatible

  • Ultra-Low Package Inductance

  • Optimized for High-Frequency Switching

  • Ideal for CPU Core DC-DC Converters

  • Optimized for both Sync.FET and some Control FET

  • Low Conduction and Switching Losses

  • Compatible with existing Surface Mount Techniques

  • 100% Rg tested


IRF6727MTRPBF Applications

  • Notebook

  • Computing

  • DC/DC  and  AC/DC  converters

  • DC/AC inverters

  • Battery-powered circuits
