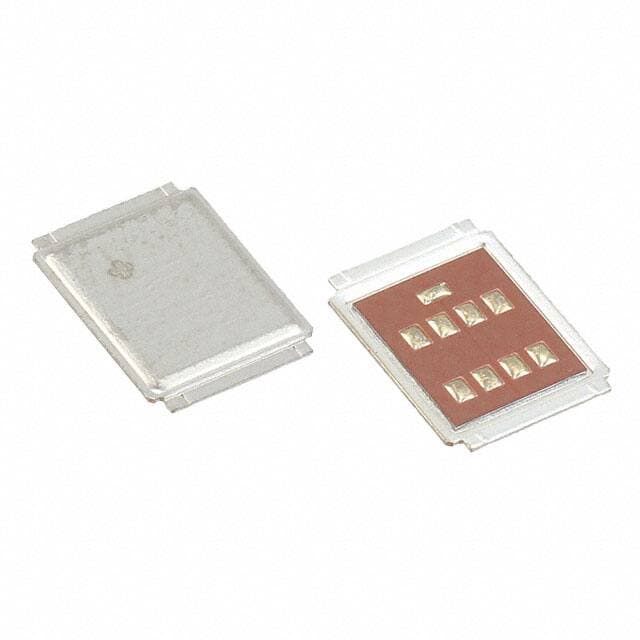

INFINEON IRF7769L1TRPBF
INFINEON IRF7769L1TRPBF

INFINEON IRF7769L1TRPBF

Manufacturer No:

IRF7769L1TRPBF

Manufacturer:

INFINEON

Package:

DirectFET? Isometric L8

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 3.5m ? @ 74A, 10V ±20V 11560pF @ 25V 300nC @ 10V 100V DirectFET? Isometric L8

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRF7769L1TRPBF information

INFINEON IRF7769L1TRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRF7769L1TRPBF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DirectFET? Isometric L8
  • Number of Pins
  • 15
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 9
  • ECCN Code
  • EAR99
  • Subcategory
  • FET General Purpose Power
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • BOTTOM
  • JESD-30 Code
  • R-XBCC-N3
  • Number of Elements
  • 1
  • Configuration
  • Single
  • Power Dissipation-Max
  • 3.3W Ta 125W Tc
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 3.3W
  • Case Connection
  • DRAIN
  • Turn On Delay Time
  • 44 ns
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 3.5m ? @ 74A, 10V
  • Vgs(th) (Max) @ Id
  • 4V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 11560pF @ 25V
  • Current - Continuous Drain (Id) @ 25°C
  • 20A Ta 124A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 300nC @ 10V
  • Rise Time
  • 32ns
  • Drain to Source Voltage (Vdss)
  • 100V
  • Drive Voltage (Max Rds On,Min Rds On)
  • 10V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 41 ns
  • Turn-Off Delay Time
  • 92 ns
  • Continuous Drain Current (ID)
  • 124A
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain Current-Max (Abs) (ID)
  • 375A
  • Drain-source On Resistance-Max
  • 0.0035Ohm
  • Pulsed Drain Current-Max (IDM)
  • 500A
  • Avalanche Energy Rating (Eas)
  • 260 mJ
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON IRF7769L1TRPBF.

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

IRF7769L1TRPBF Description


IRF7769L1TRPBF belongs to the family of power MOSFETs that are designed based on the latest HEXFET? Power MOSFET Silicon technology and the advanced DirectFETTM packaging. Both of them enable the IRF7769L1TRPBF to make possible the lowest on-state resistance in a package that has a footprint smaller than a D2PAK. The DirectFET? package is compatible with existing surface mount techniques and allows dual sided cooling to maximize thermal transfer in power systems.


IRF7769L1TRPBF Features


DirectFET? package
Reduced total losses
System reliability improvements
High level of thermal performance
High efficiency and low temperatures
HEXFET? Power MOSFET Silicon technology


IRF7769L1TRPBF Applications


High-frequency switching applications
Synchronous rectification applications
High-performance isolated converter
