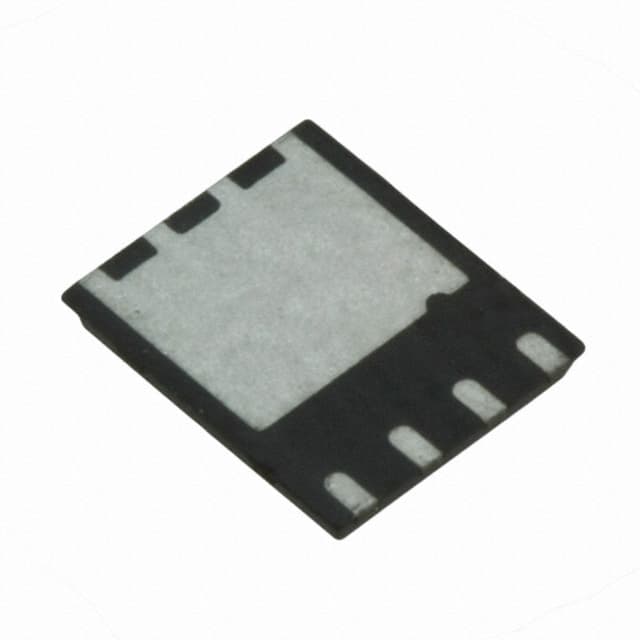

INFINEON IRFH5406TR2PBF
INFINEON IRFH5406TR2PBF

INFINEON IRFH5406TR2PBF

Manufacturer No:

IRFH5406TR2PBF

Manufacturer:

INFINEON

Package:

8-PowerVDFN

Description:

MOSFET (Metal Oxide) N-Channel Cut Tape (CT) 14.4mOhm @ 24A, 10V 1256pF @ 25V 35nC @ 10V 60V 8-PowerVDFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRFH5406TR2PBF information

INFINEON IRFH5406TR2PBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRFH5406TR2PBF.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-PowerVDFN
  • Number of Pins
  • 8
  • Supplier Device Package
  • 8-PQFN (5x6)
  • Packaging
  • Cut Tape (CT)
  • Series
  • HEXFET®
  • Published
  • 2011
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Max Power Dissipation
  • 3.6W
  • Technology
  • MOSFET (Metal Oxide)
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power Dissipation
  • 3.6W
  • Turn On Delay Time
  • 5.4 ns
  • FET Type
  • N-Channel
  • Rds On (Max) @ Id, Vgs
  • 14.4mOhm @ 24A, 10V
  • Vgs(th) (Max) @ Id
  • 4V @ 50?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 1256pF @ 25V
  • Current - Continuous Drain (Id) @ 25°C
  • 11A Ta 40A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 35nC @ 10V
  • Drain to Source Voltage (Vdss)
  • 60V
  • Fall Time (Typ)
  • 3.5 ns
  • Turn-Off Delay Time
  • 12 ns
  • Continuous Drain Current (ID)
  • 40A
  • Threshold Voltage
  • 4V
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • 60V
  • Input Capacitance
  • 1.256nF
  • Recovery Time
  • 30 ns
  • Drain to Source Resistance
  • 14.4mOhm
  • Rds On Max
  • 2.3 m?
  • Nominal Vgs
  • 2 V
  • Height
  • 810?m
  • Length
  • 5mm
  • Width
  • 5.0038mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON IRFH5406TR2PBF.

Datasheets:

Other Related Documents:

ConflictMineralStatement:

IRFH5406TR2PBF Description


IRFH5406TR2PBF emerges as a member of HEXFET? power MOSFET provided by Infineon Technologies. It is compatible with existing surface mount techniques, thus it can be manufactured in an easier way. Low thermal resistance to PCB (<0.5??C/W) enables better thermal dissipation. Low conduction losses can also be realized due to its low RDS (on) (<14.4 m|?). As a result, IRFH5406TR2PBF is well suited for inverters in DC motors, secondary side synchronous rectification, boost converters, and DC-DC brick applications.



IRFH5406TR2PBF Features


  • Increased power density

  • Increased reliability

  • Lower conduction losses

  • Environmentally Friendly

  • Multi-vendor compatibility

  • Available in the PQFN package



IRFH5406TR2PBF Applications


  • Boost converters

  • Inverters in DC motors

  • Secondary side synchronous rectification

  • DC-DC brick applications
