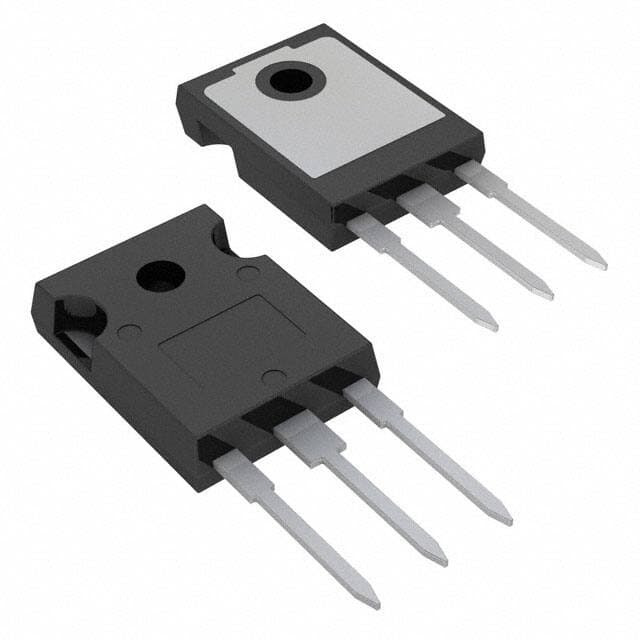

INFINEON IRFP4768PBF
INFINEON IRFP4768PBF

INFINEON IRFP4768PBF

Manufacturer No:

IRFP4768PBF

Manufacturer:

INFINEON

Package:

TO-247-3

Description:

MOSFET (Metal Oxide) N-Channel Tube 17.5m ? @ 56A, 10V ±20V 10880pF @ 50V 270nC @ 10V TO-247-3

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRFP4768PBF information

INFINEON IRFP4768PBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRFP4768PBF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-3
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tube
  • Series
  • HEXFET®
  • Published
  • 2009
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • Termination
  • Through Hole
  • ECCN Code
  • EAR99
  • Resistance
  • 17.5MOhm
  • Technology
  • MOSFET (Metal Oxide)
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 520W Tc
  • Element Configuration
  • Single
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 520W
  • Case Connection
  • DRAIN
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 17.5m ? @ 56A, 10V
  • Vgs(th) (Max) @ Id
  • 5V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 10880pF @ 50V
  • Current - Continuous Drain (Id) @ 25°C
  • 93A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 270nC @ 10V
  • Rise Time
  • 160ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 10V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 110 ns
  • Turn-Off Delay Time
  • 57 ns
  • Continuous Drain Current (ID)
  • 93A
  • Threshold Voltage
  • 5V
  • JEDEC-95 Code
  • TO-247AC
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • 250V
  • Dual Supply Voltage
  • 250V
  • Avalanche Energy Rating (Eas)
  • 770 mJ
  • Nominal Vgs
  • 5 V
  • Height
  • 20.7mm
  • Length
  • 15.87mm
  • Width
  • 5.3086mm

Download datasheets and manufacturer documentation for INFINEON IRFP4768PBF.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

IRFP4768PBF Description



IRFP4768PBF N-Channel MOSFET is a type of Power MOSFET that is optimized for high current capability. IRFP4768PBF MOSFET is ideal for low frequency applications requiring performance and ruggedness. IRFP4768PBF Infineon Technologies is general use and is suitable for Solar power inverter, UPS, DC motor drives, as well as SMPS.
