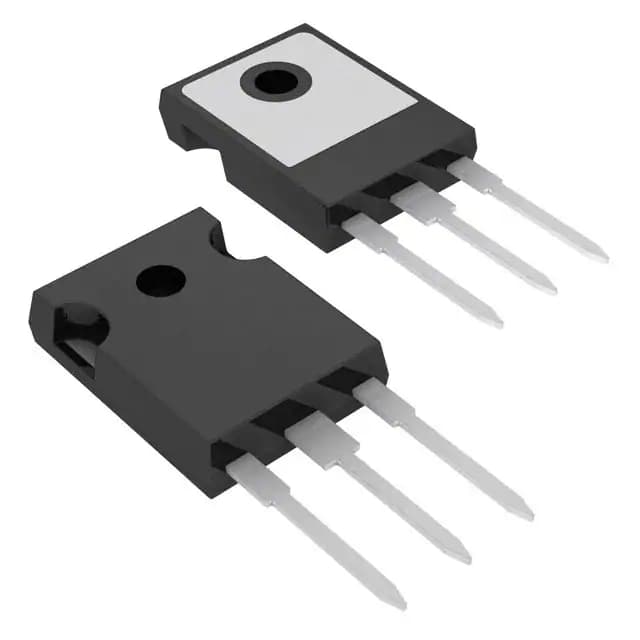

VISHAY IRFP9240PBF

Manufacturer No:

IRFP9240PBF

Manufacturer:

VISHAY

Package:

TO-247-3

Description:

MOSFET (Metal Oxide) P-Channel Tube 500mOhm @ 7.2A, 10V ±20V 1200pF @ 25V 44nC @ 10V 200V TO-247-3

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRFP9240PBF information

VISHAY IRFP9240PBF technical specifications, attributes, parameters and parts with similar specifications to VISHAY IRFP9240PBF.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-247-3

Number of Pins
3

Supplier Device Package
TO-247-3

Weight
38.000013g

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Published
1997

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Through Hole

Resistance
500mOhm

Max Operating Temperature
150°C

Min Operating Temperature
-55°C

Voltage - Rated DC
-200V

Technology
MOSFET (Metal Oxide)

Current Rating
-12A

Number of Elements
1

Number of Channels
1

Power Dissipation-Max
150W Tc

Element Configuration
Single

Turn On Delay Time
14 ns

FET Type
P-Channel

Rds On (Max) @ Id, Vgs
500mOhm @ 7.2A, 10V

Vgs(th) (Max) @ Id
4V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
1200pF @ 25V

Current - Continuous Drain (Id) @ 25°C
12A Tc

Gate Charge (Qg) (Max) @ Vgs
44nC @ 10V

Rise Time
43ns

Drain to Source Voltage (Vdss)
200V

Drive Voltage (Max Rds On,Min Rds On)
10V

Vgs (Max)
±20V

Fall Time (Typ)
38 ns

Turn-Off Delay Time
39 ns

Continuous Drain Current (ID)
-12A

Threshold Voltage
-4V

Gate to Source Voltage (Vgs)
20V

Drain to Source Breakdown Voltage
-200V

Dual Supply Voltage
-200V

Input Capacitance
1.2nF

Recovery Time
300 ns

Max Junction Temperature (Tj)
150°C

Drain to Source Resistance
500mOhm

Rds On Max
500 m?

Download datasheets and manufacturer documentation for VISHAY IRFP9240PBF.

IRFP9240PBF Overview

A device's maximal input capacitance is 1200pF @ 25V, which is defined as the capacitance between its input terminals with either input grounded.This device's continuous drain current (ID) is -12A, which represents the maximum continuous current it can conduct.In this device, the drain-source breakdown voltage is -200V and the drain-source breakdown voltage is the VDS at which a specified value of ID flows.Its turn-off delay time is 39 ns, which is the time to charge the device's input capacitance before drain current conduction begins.When a gate-to-source voltage (VGS) is applied to bias a MOSFET to the on state, the resistance between the drain and the source of the device is 500mOhm.Input capacitance charging takes time before drain current conduction begins, so the turn-on delay time is 14 ns.Gate-source voltage, or VGS, is the voltage across a FET transistor's gate-source terminal, and can be 20V volts.An electrical device's threshold voltage is the point at which any of its operations will become active, and this transistor has a -4V threshold voltage.This transistor requires a 200V drain to source voltage (Vdss).This device reduces its overall power consumption by using drive voltage (10V).

IRFP9240PBF Features

a continuous drain current (ID) of -12A
a drain-to-source breakdown voltage of -200V voltage
the turn-off delay time is 39 ns
single MOSFETs transistor is 500mOhm
a threshold voltage of -4V
a 200V drain to source voltage (Vdss)

IRFP9240PBF Applications

There are a lot of Vishay Siliconix
IRFP9240PBF applications of single MOSFETs transistors.

Consumer Appliances
Lighting
Uninterruptible Power Supply
AC-DC Power Supply
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
