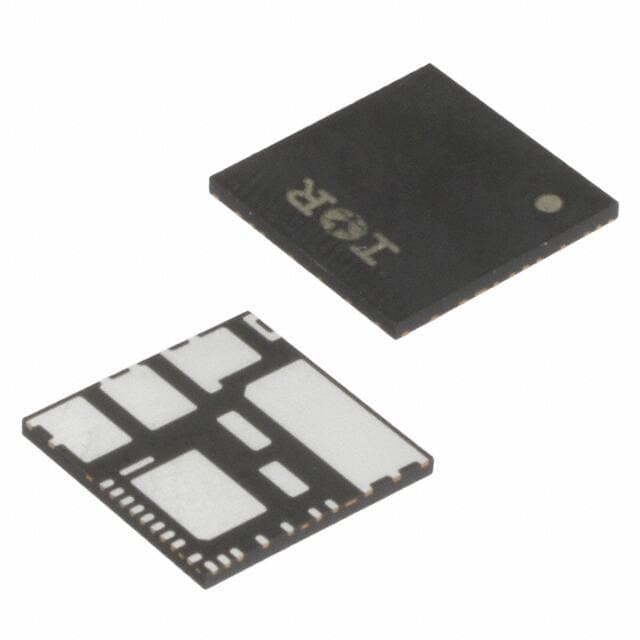

INFINEON IRSM836-035MBTR

Manufacturer No:

IRSM836-035MBTR

Manufacturer:

INFINEON

Package:

31-PowerVQFN

Description:

12mm mm Motor Drivers 27 15V V 12mm mm Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IRSM836-035MBTR information

INFINEON IRSM836-035MBTR technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRSM836-035MBTR.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Surface Mount

Package / Case
31-PowerVQFN

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
27

Applications
Appliance

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
UMOS

Voltage - Supply
13.5V~16.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
IRSM836-035

JESD-30 Code
S-PQMA-N27

Function
Driver - Fully Integrated, Control and Power Stage

Qualification Status
Not Qualified

Power Supplies
15V

Supply Voltage-Min (Vsup)
13.5V

Interface
Parallel

Analog IC - Other Type
AC MOTOR CONTROLLER

Output Configuration
Half Bridge (3)

Current - Output
3A

Supply Current-Max (Isup)
10mA

Voltage - Load
400V Max

Motor Type - AC, DC
AC, Synchronous

Length
12mm

Height Seated (Max)
1mm

Width
12mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON IRSM836-035MBTR.

IRSM836-035MBTR Overview

The package contains [0].There is 31-PowerVQFN case included with the part.A mounting position of Surface Mountis recommended for the part.Fits the component connected to Appliance.There is a possibility of providing 13.5V~16.5Vvolts through the device.In terms of operating temperature, it falls within the range -40°C~150°C TJ.A motor of this type can be categorized as AC, Synchronous.In this part, there are 27 terminations available.In this case, the voltage can be applied to the load at the rate of 400V Max.Drivers controllers is recommended that this amplifier be run at 15V.Maintain a 3Aoutput current for the part.A AC MOTOR CONTROLLERanalog IC is employed in this device.Using the IRSM836-035part number, it is located.Drivers controllers is a part of the Motion Control Electronics series.

IRSM836-035MBTR Features

Applications : Appliance
Load voltage across the chip 400V Max
base on IRSM836-035 number

IRSM836-035MBTR Applications

There are a lot of Infineon Technologies
IRSM836-035MBTR motor drivers applications.

Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
