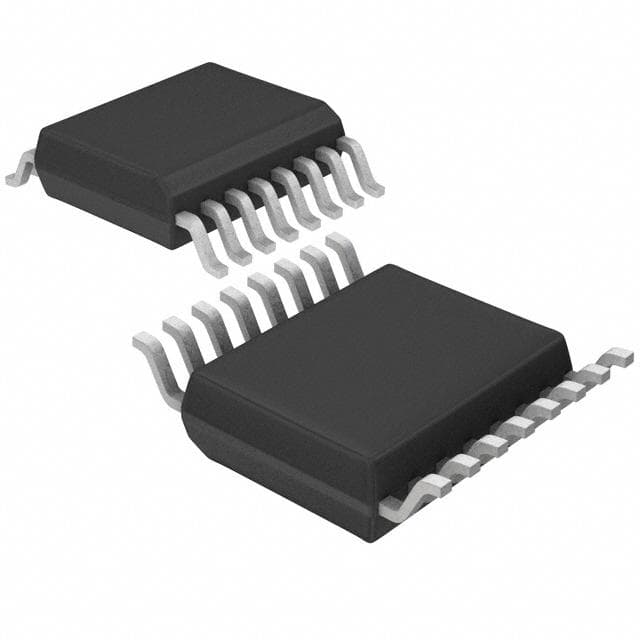

Renesas ISL28478FAZ

Manufacturer No:

ISL28478FAZ

Manufacturer:

Renesas

Package:

SSOP

Description:

31mA per Channel 10pA 100 dB Instrumentational OP Amps 0.00003μA 16 Pins SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL28478FAZ information

Renesas ISL28478FAZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28478FAZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

JESD-30 Code
R-PDSO-G16

Qualification Status
Not Qualified

Temperature Grade
AUTOMOTIVE

Operating Supply Current
240μA

Supply Current-Max
0.35mA

Slew Rate
0.14 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
100 dB

Current - Input Bias
10pA

Output Current per Channel
31mA

Input Offset Voltage (Vos)
200nV

Gain Bandwidth Product
300 kHz

Unity Gain BW-Nom
300 kHz

Average Bias Current-Max (IIB)
0.00003μA

Low-Offset
YES

Frequency Compensation
YES

Supply Voltage Limit-Max
5.5V

Low-Bias
YES

Micropower
YES

Bias Current-Max (IIB) @25C
0.00003μA

Programmable Power
NO

Wideband
NO

Power
NO

Voltage Gain-Min
190000

Height Seated (Max)
1.7272mm

Download datasheets and manufacturer documentation for Renesas ISL28478FAZ.

ISL28478FAZ Overview

It is packaged in an SSOP-case that protects the operational amplifiers from damage. An op amp of this type is a OPERATIONAL AMPLIFIER-type. It is estimated that there will be at least 16 terminations this year. A total of 16 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. Op amp ic rates 200nV for input offset voltage. A supply current of 240μA can be used to operate this linear amplifier. This op amp ic has 4 circuits. This instrumentation amplifier cannot operate below -40°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 125°C. This op amp ic can conduct a minimum voltage gain of 190000.

ISL28478FAZ Features

16 Pins
supply voltage of 5V

ISL28478FAZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL28478FAZ Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
