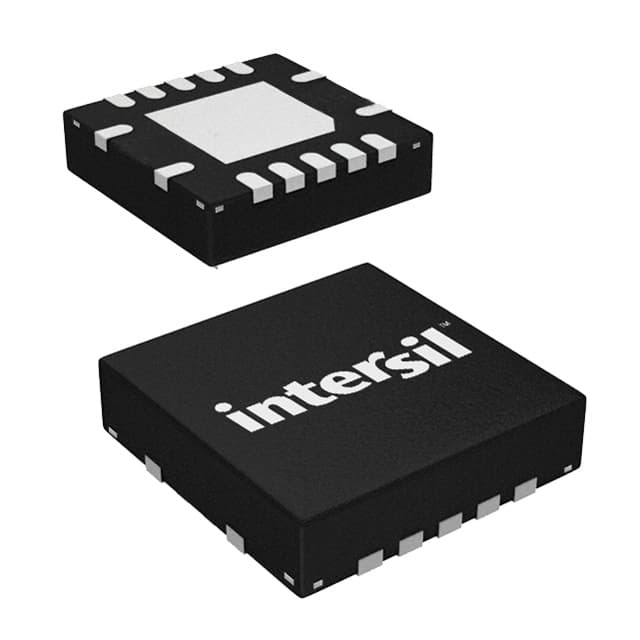

Renesas ISL3036EIRZ-T

Manufacturer No:

ISL3036EIRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

14 pins Voltage Translators & Level Shifters QFN 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL3036EIRZ-T information

Renesas ISL3036EIRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL3036EIRZ-T.

Type
Parameter

Package / Case
QFN

Surface Mount
YES

Number of Pins
14

Published
2006

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Interface ICs

Technology
BICMOS

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

JESD-30 Code
R-PQCC-N16

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
2.5/3.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.2V

Number of Bits
4

Logic Function
Translator

Data Rate
100 Mbps

Output Characteristics
3-STATE

Output Polarity
TRUE

High Level Output Current
-20?A

Low Level Output Current
20?A

Length
2.6mm

Height Seated (Max)
0.55mm

Width
1.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL3036EIRZ-T.

ISL3036EIRZ-T Overview

The QFN package contains it.Ending a transmission line involves 16 terminations.A supply voltage of 3.3V powers it.There are 14 pins on it.There are 4 bits in this electronic part.In Other Interface ICs, this part is included.In order for Level translators to operate, level translators needs a power supply of 2.5/3.3V.Normal operation requires a supply voltage (Vsup) above 2.2V.Level translators is recommended to operate at a temperature higher than -40°C.Ideally, the operating temperature should be lower than 85°C.

ISL3036EIRZ-T Features

QFN package
14 pins
2.5/3.3V power supplies

ISL3036EIRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL3036EIRZ-T voltage translators & level shifters applications.

Industrial
Personal Electronics
Enterprise
Telecom
GPIO
MDIO
PMBus
SMBus
SDIO
UART
