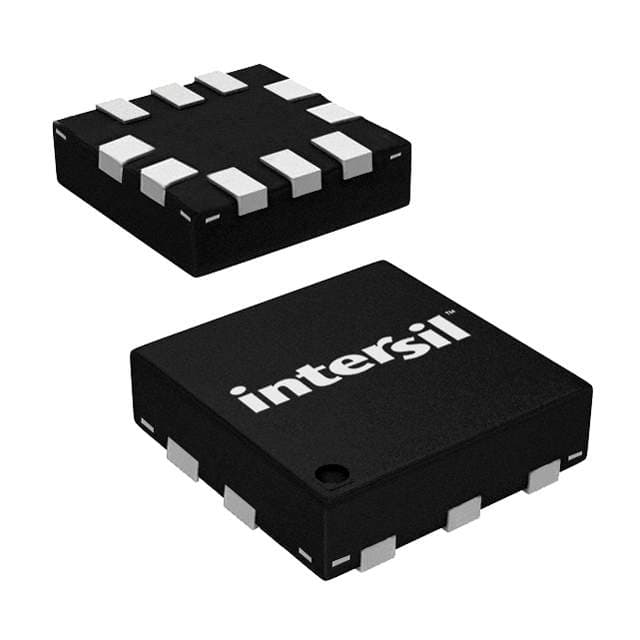

Renesas ISL54050IRUZ-T7A
Renesas ISL54050IRUZ-T7A

Renesas ISL54050IRUZ-T7A

Manufacturer No:

ISL54050IRUZ-T7A

Manufacturer:

Renesas

Package:

Description:

QUAD Analog Switches 10 Pins 3V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL54050IRUZ-T7A information

Renesas ISL54050IRUZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL54050IRUZ-T7A.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Number of Pins
  • 10
  • Packaging
  • Cut Tape
  • Published
  • 2001
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 10
  • Resistance
  • 500mOhm
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • 2-CHANNEL MUX/DEMUX
  • HTS Code
  • 8542.39.00.01
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 2
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 0.4mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 10
  • Operating Supply Voltage
  • 3V
  • Number of Channels
  • 1
  • Max Supply Voltage
  • 4.5V
  • Min Supply Voltage
  • 1.65V
  • Operating Supply Current
  • 100nA
  • Nominal Supply Current
  • 10nA
  • Max Supply Current
  • 100nA
  • Throw Configuration
  • SPDT
  • Turn On Delay Time
  • 70 ns
  • Supply Type
  • Single
  • Turn-Off Delay Time
  • 54 ns
  • Off-state Isolation-Nom
  • 62 dB
  • On-state Resistance Match-Nom
  • 0.06Ohm
  • Length
  • 1.8mm
  • Height Seated (Max)
  • 0.55mm
  • Width
  • 1.4mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL54050IRUZ-T7A.

Datasheets:

ISL54050IRUZ-T7A Overview


High reliability is provided by advanced packaging method Cut Tape. Total terminations are 10. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 3V volts, the electrical component should be turned on and run. The electronic part body is injected with 10 pins. There is 500mOhm internal resistance in this digital multiplexer. For functions related to 10 pins, please refer to the datasheets. A voltage higher than 4.5V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 1.65V should be the lowest voltage fed to the electronic component. For this multiplexer to operate, 100nA current would be sufficient. The analogue multiplexer may be damaged if voltage is greater than 100nA. 3V operating voltages are supported by the electronic component. Additional features of the electronic component include: 2-CHANNEL MUX/DEMUX. Temperatures above 85°C should not be used to operate the switches.

ISL54050IRUZ-T7A Features


1 Channels
100nA Supply Current
Additional Features: 2-CHANNEL MUX/DEMUX


ISL54050IRUZ-T7A Applications


There are a lot of Intersil (Renesas Electronics America)
ISL54050IRUZ-T7A Analog Switches & Multiplexers ICs applications.


  • Transmit
  • Low-Voltage
  • Isolation
  • Medical
  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
