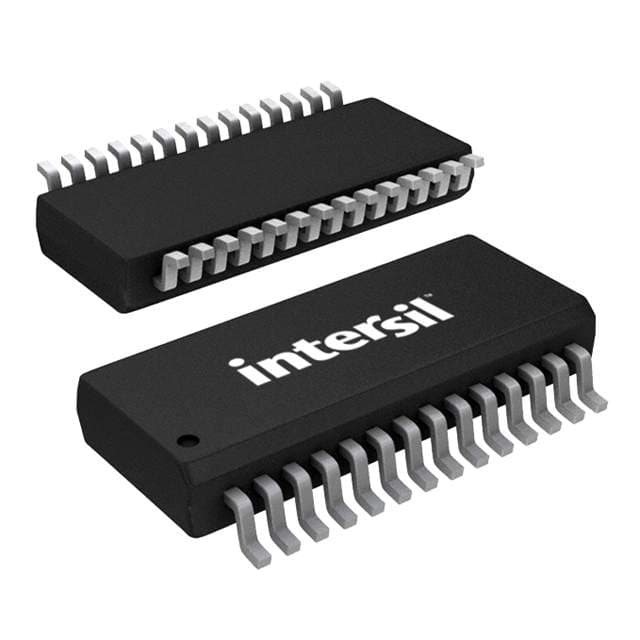

Renesas ISL6227CA

Manufacturer No:

ISL6227CA

Manufacturer:

Renesas

Package:

SSOP

Description:

5.5V 240 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6227CA information

Renesas ISL6227CA technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6227CA.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Published
2003

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

Additional Feature
ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 5.5V

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.635mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

Number of Outputs
2

Qualification Status
Not Qualified

Input Voltage-Nom
16V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Voltage - Output
5.5V

Input Voltage (Min)
5V

Control Mode
CURRENT-MODE

Output Current-Max
5A

Control Technique
HYSTERETIC CURRENT MODE

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
345kHz

Length
9.905mm

Height Seated (Max)
1.75mm

Width
3.895mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6227CA.

Datasheets:

intersil-isl6227ca-datasheets-7538.pdf

ISL6227CA Overview

A total of 2outputs are supported by this voltage regulator. The rectifier regulator is packaged in SSOP to facilitate transportation. An output voltage of 5.5V is provided by this power supply regulator. There are 28terminals on the voltage regulator. As a DUAL SWITCHING CONTROLLER regulator, the electronic part has received high praise. Pinouts for the rectifier regulator begin at 28. There is a Surface Mount on the board for mounting to a PCB or other board. The voltage controller plays an important role in the industry, as do other Switching Regulator or Controllers. Temperatures below -10°Care not suitable for the shunt regulator. A temperature higher than 100°Cshould not be used. This variable voltage regulator has the following extra characteristics: ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9V TO 5.5V. At maximum, electronic part is specified to output current 5A.

ISL6227CA Features

DUAL SWITCHING CONTROLLER analog IC

ISL6227CA Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6227CA Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
