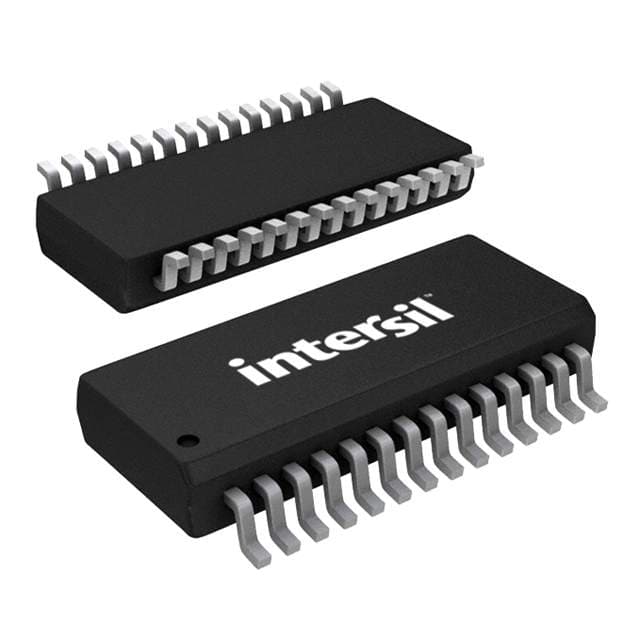

Renesas ISL6253HAZ-T

Manufacturer No:

ISL6253HAZ-T

Manufacturer:

Renesas

Package:

SSOP

Description:

1 Channel DUAL Battery Management ICs 18V SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6253HAZ-T information

Renesas ISL6253HAZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6253HAZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
18V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

JESD-30 Code
R-PDSO-G28

Temperature Grade
OTHER

Supply Voltage-Min (Vsup)
7V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Voltage - Output
4.2V

Control Mode
CURRENT-MODE

Output Current-Max
0.5A

Switching Frequency-Max
360kHz

Length
9.905mm

Height Seated (Max)
1.75mm

Width
3.895mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6253HAZ-T.

ISL6253HAZ-T Overview

A SSOP package would be appropriate for this. IC POWER SUPPLY SUPPORT CIRCUIT is the system battery's analog IC. The available channels are 1. Tape & Reel (TR) cases are used for packaging. Surface Mount is the mount number for this electronic part. Switching Regulator or Controllers is a family of electronic parts. It must be greater than -10°C to activate this system battery. Temperatures below 100°C are recommended. It is recommended that this battery protection IC be set to 18V at all times. Total number of pins is 28. A voltage of 25V is reached when the maximum supply voltage (Vsup) is reached. A voltage greater than 7V (Vsup) must be required for a power supply. In this case, it produces 4.2V voltage as an output.

ISL6253HAZ-T Features

Available in SSOP Package
operate supply voltage at the range of 18V
Supply Voltage-Max (Vsup) : 25V

ISL6253HAZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6253HAZ-T Battery Management ICs applications.

Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
Weather stations
Distributed energy resources
Solar and wind-generating plants
