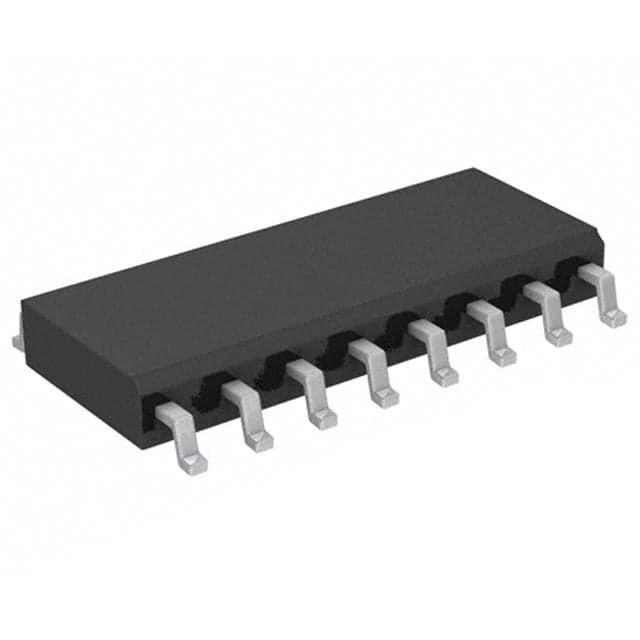

Renesas ISL6521CBZA
Renesas ISL6521CBZA

Renesas ISL6521CBZA

Manufacturer No:

ISL6521CBZA

Manufacturer:

Renesas

Package:

SOIC

Description:

1.27mm PMIC SOIC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6521CBZA information

Renesas ISL6521CBZA technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6521CBZA.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • SOIC
  • Published
  • 2000
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 1.27mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 16
  • JESD-30 Code
  • R-PDSO-G16
  • Number of Outputs
  • 4
  • Qualification Status
  • Not Qualified
  • Input Voltage-Nom
  • 5V
  • Temperature Grade
  • COMMERCIAL
  • Analog IC - Other Type
  • SWITCHING CONTROLLER
  • Control Mode
  • VOLTAGE-MODE
  • Frequency - Switching
  • 300kHz
  • Input Voltage (Max)
  • 5.5V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Switcher Configuration
  • PUSH-PULL
  • Current - Output 2
  • 120mA
  • Current - Output 3
  • 120mA
  • Length
  • 9.9mm
  • Height Seated (Max)
  • 1.75mm
  • Width
  • 3.9mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6521CBZA.

Datasheets:

ISL6521CBZA Overview


It is packaged in SOIC for voltage regulators' voltage regulators' transportation.Voltage regulator supports 4 outputs in total.You can find 16 terminals of the voltage regulator 12v.The pinout of the switching regulator starts from 16 pins it has.When proceeding relow solder, temperature is allowed to peak 260.This regulator controller presents a quiescent current of 5mA.It has a Surface Mount for mouting on PCB or other boards.Temperature lower than 0°C is not suitable for the voltage regulator.Temperature higher than 70°C is not recommended for use.

ISL6521CBZA Features


4 outputs
Peak Reflow Temperature: 260
Quiescent Current: 5mA


ISL6521CBZA Applications


There are a lot of Intersil (Renesas Electronics America)
ISL6521CBZA Linear Regulator Controllers applications.


  • Ultrahigh current ultralow dropout voltage regulator
  • Constant high-current source
  • Low parts count 5.0V to 3.3V computer supply
  • Low noise SMPS post regulator
  • Low-dropout SMPS post regulator
  • High-current, current-limited switch
  • Dual/Triple Power Supplies
  • Desknotes and Notebooks
  • Graphic Cards
  • Ultra-Low-Dropout
