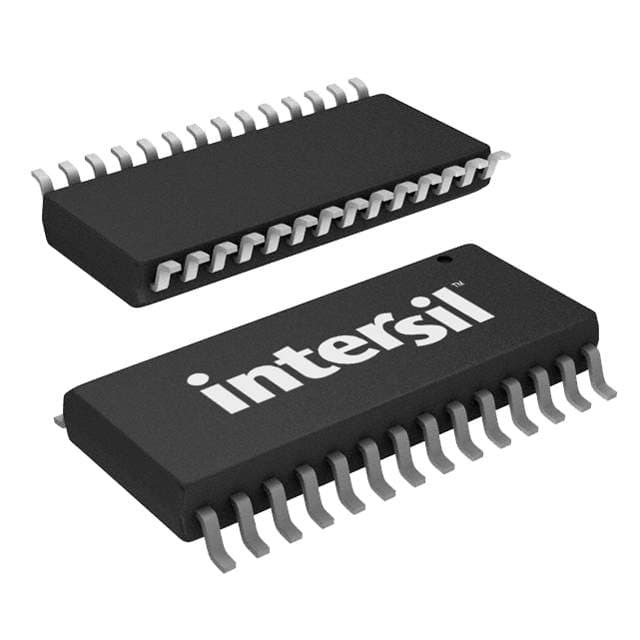

Renesas ISL6524CB

Manufacturer No:

ISL6524CB

Manufacturer:

Renesas

Package:

SOIC

Description:

240 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6524CB information

Renesas ISL6524CB technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6524CB.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
28

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO CONTAINS 3 LINEAR CONTROLLERS

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

Number of Outputs
4

Qualification Status
Not Qualified

Input Voltage-Nom
12V

Max Supply Voltage
13.2V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
25A

Input Voltage (Min)
10.8V

Control Mode
VOLTAGE-MODE

Frequency - Switching
215kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Duty Cycle (Max)
100 %

Length
17.9mm

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6524CB.

Datasheets:

intersil-isl6524cb-datasheets-5781.pdf

intersil-isl6524cb-datasheets-7238.pdf

ISL6524CB Overview

Currently, it supports a total of 4 outputs. The rectifier regulator is packaged in SOIC in order to facilitate transportation. Electronic components have 28 terminals. As a SWITCHING CONTROLLER regulator, the electronic part has received high ratings. This alternator regulator has a pinout starting from 28 pins. A Surface Mount is provided for mounting it on PCBs and other boards. The power supply regulator has a pin count of 28. The AC voltage regulator is one example of how other Switching Regulator or Controllers play a critical role in the industry. A temperature lower than 0°Cis not suitable for the shunt regulator. There is no need to exceed 70°C in terms of temperature. As an additional feature of this voltage regulator, please refer to the following: ALSO CONTAINS 3 LINEAR CONTROLLERS. In the DC voltage regulators, the maximum supply voltage is 13.2V. A switching frequency of 215kHzis available with this AC voltage regulator.
