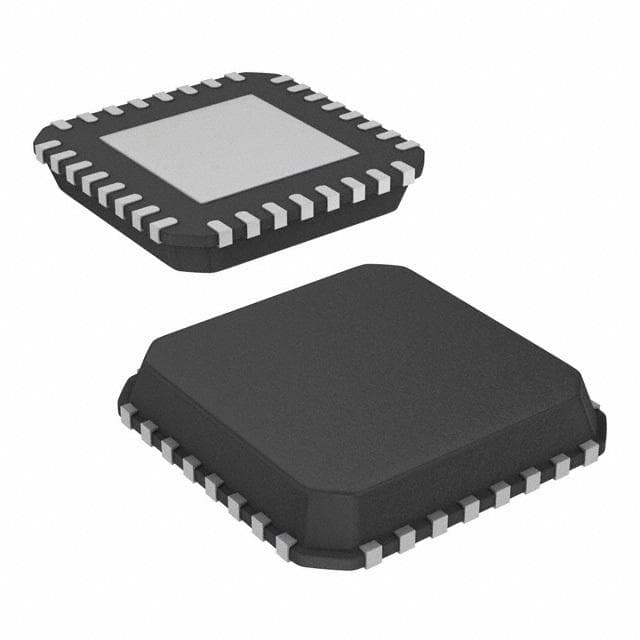

Renesas ISL6531CRZ-T

Manufacturer No:

ISL6531CRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

2.5V 240 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6531CRZ-T information

Renesas ISL6531CRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6531CRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Packaging
Tape and Reel

Published
2000

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
TIN LEAD

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
2

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Current - Output
2A

Voltage - Output
2.5V

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
325kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Duty Cycle (Max)
100 %

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6531CRZ-T.

Datasheets:

intersil-isl6531crzt-datasheets-9235.pdf

ISL6531CRZ-T Overview

As a whole, it supports 2 outputs. For ease of transportation, alternator regulator is packaged in QFN. The power regulator is ready for shipment in Tape and Reel. There is a general voltage output of 2.5V from this power supply regulator. The voltage regulator contains 32terminals. The electronic part is widely regarded as a regulator of type DUAL SWITCHING CONTROLLER. Assuming that the rectifier regulator has 32 pins, the pinout begins from there. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 32 pins are available. It cannot be operated at a temperature below 0°C. The temperature should not exceed 70°C. Voltage regulators have a maximum supply voltage of 5.5V. Voltage regulators with 325kHzswitching frequencies are available.

ISL6531CRZ-T Features

DUAL SWITCHING CONTROLLER analog IC
Switching at 325kHz

ISL6531CRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6531CRZ-T Specialized Voltage Regulators applications.

Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
