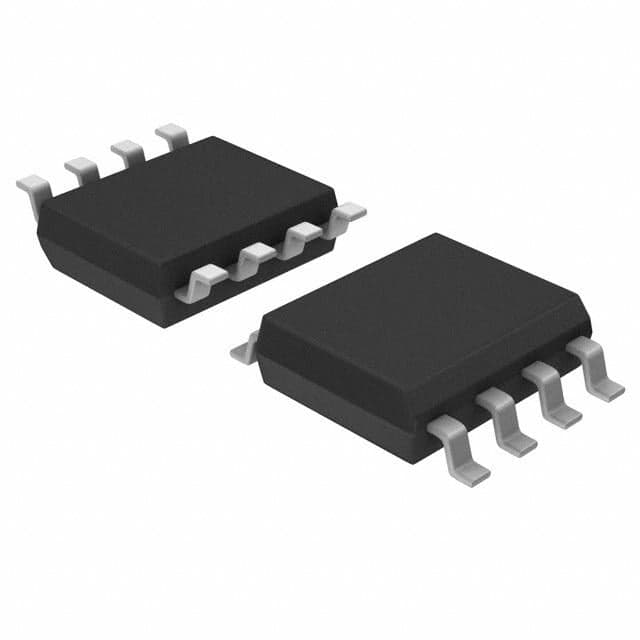

Renesas ISL8323IBZ
Renesas ISL8323IBZ

Renesas ISL8323IBZ

Manufacturer No:

ISL8323IBZ

Manufacturer:

Renesas

Package:

SOIC

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 8 Pins 5V SOIC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL8323IBZ information

Renesas ISL8323IBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8323IBZ.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • SOIC
  • Number of Pins
  • 8
  • Packaging
  • Bulk
  • Published
  • 1999
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • Resistance
  • 60Ohm
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Multiplexer or Switches
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 2
  • Supply Voltage
  • 5V
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 8
  • Power Supplies
  • 3/5V
  • Number of Channels
  • 1
  • Max Supply Voltage
  • 12V
  • Min Supply Voltage
  • 2.7V
  • Operating Supply Current
  • 1?A
  • Max Supply Current
  • 1?A
  • Number of Bits
  • 2
  • Throw Configuration
  • SPST
  • Turn On Delay Time
  • 150 ns
  • Supply Type
  • Single
  • Turn-Off Delay Time
  • 100 ns
  • Off-state Isolation-Nom
  • 72 dB
  • On-state Resistance Match-Nom
  • 0.8Ohm
  • Switching
  • BREAK-BEFORE-MAKE
  • Length
  • 4.9mm
  • Height Seated (Max)
  • 1.75mm
  • Width
  • 3.9mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas ISL8323IBZ.

Datasheets:

ISL8323IBZ Overview


This electronic part is conveniently packaged in SOIC, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Bulk. In total, there have been 8 terminations. A 1 channel electronic part produces high-quality output. A 5V voltage supply should turn on and run the electronic component. An injection of 8 pins is performed into the body of the electrical component. Analog switches have 60Ohm internal resistance. To find out what the 8 pins do, please refer to the datasheets. It is a typical Multiplexer or Switches analog multiplexer. Users should never supply a voltage higher than 12V to a switch device. Analog switch ics with Single supply type are cost-effective. There should be 2.7V voltage fed to the electrical part below 2.7V. It would be sufficient to run this analogue multiplexer with 1?A current. The switch multiplexer may be damaged if it is exposed to voltage greater than 1?A. Temperatures higher than 85°C are not recommended for operation of the analogue multiplexer. It can conduct 2-bit signals.
