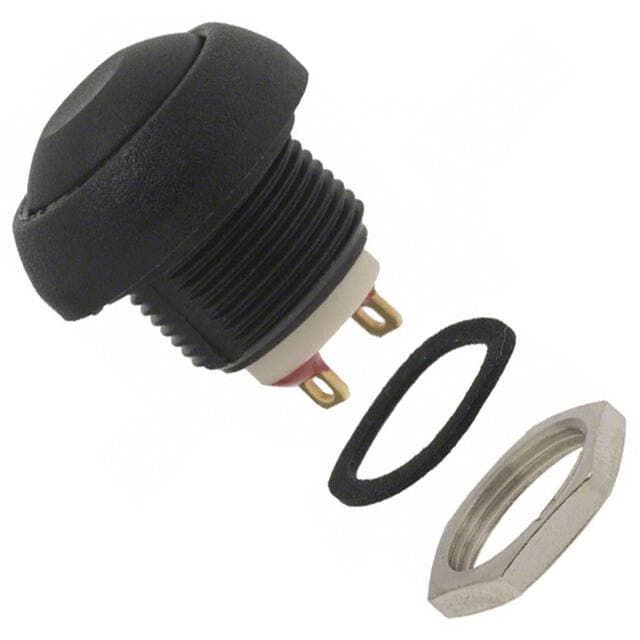

APEM ISR3SAD200
APEM ISR3SAD200

APEM ISR3SAD200

Manufacturer No:

ISR3SAD200

Manufacturer:

APEM

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISR3SAD200 information

APEM ISR3SAD200 technical specifications, attributes, parameters and parts with similar specifications to APEM ISR3SAD200.

  • Type
  • Parameter
  • Factory Lead Time
  • 5 Weeks
  • Contact Material
  • Gold, Silver
  • Contact Plating
  • Gold
  • Mount
  • Front, Panel
  • Mounting Type
  • Panel Mount, Front
  • Housing Material
  • Thermoplastic
  • Actuator Material
  • Polyamide
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • IS
  • JESD-609 Code
  • e4
  • Feature
  • Epoxy Sealed Terminals
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Type
  • Standard
  • Voltage - Rated DC
  • 50V
  • Current Rating (Amps)
  • 400mA AC 100mA DC
  • Orientation
  • Straight
  • Ingress Protection
  • IP67 - Dust Tight, Waterproof
  • Depth
  • 17.5mm
  • Current Rating
  • 100mA
  • Termination Style
  • Solder Lug
  • Voltage - Rated AC
  • 125V
  • Circuit
  • SPST-NO
  • Switch Function
  • Off-Mom
  • Panel Cutout Dimensions
  • Circular - 13.60mm Dia
  • Contact Resistance
  • 50mOhm
  • Color - Actuator/Cap
  • Black
  • Contact Current(DC)-Max
  • 0.1A
  • Sealing
  • CORROSION PROOF; EPOXY TERMINAL SEALED; IP67
  • Max Voltage Rating (AC)
  • 125V
  • Max Current Rating
  • 400mA
  • Electrical Life
  • 500,000 Cycles
  • Throw Configuration
  • SPST
  • Max Voltage Rating (DC)
  • 50V
  • Mechanical Life
  • 1,000,000 Cycles
  • Contact Current Rating
  • 400mA
  • Contact Current(AC)-Max
  • 0.4A
  • Contact (DC) Max Rating R Load
  • .1A@50VDC
  • Operating Force-Max
  • 5 N
  • Length
  • 17.5mm
  • Body Height
  • 9.8mm
  • Actuator Length
  • 2mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for APEM ISR3SAD200.

Datasheets:

Environmental Information:

Description:
The APEM ISR3SAD200 is a single-pole single-throw (SPST) pushbutton switch with a 0.4A 32V rating. It is a momentary switch, meaning that it will only remain in the "on" position while the button is being pressed. The switch is designed for panel mounting and has a black plastic body with a red actuator.

Features:
• SPST momentary switch
• 0.4A 32V rating
• Panel mountable
• Black plastic body with red actuator
• RoHS compliant

Applications:
The APEM ISR3SAD200 is suitable for a wide range of applications, including industrial control systems, automotive electronics, and consumer electronics. It can be used to control the operation of motors, lights, and other electrical devices.
