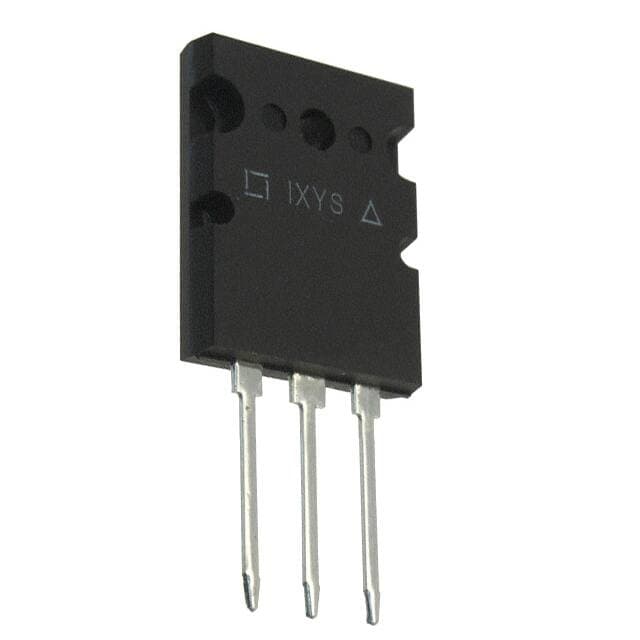

LITTELFUSE IXFB44N100P

Manufacturer No:

IXFB44N100P

Manufacturer:

LITTELFUSE

Package:

TO-264-3, TO-264AA

Description:

MOSFET (Metal Oxide) N-Channel Tube 220m ? @ 22A, 10V ±30V 19000pF @ 25V 305nC @ 10V 1000V TO-264-3, TO-264AA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXFB44N100P information

LITTELFUSE IXFB44N100P technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXFB44N100P.

Type
Parameter

Factory Lead Time
26 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-264-3, TO-264AA

Number of Pins
3

Transistor Element Material
SILICON

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

Series
HiPerFET?, PolarP2?

Published
2008

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
AVALANCHE RATED

Subcategory
FET General Purpose Power

Technology
MOSFET (Metal Oxide)

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
3

Qualification Status
Not Qualified

Number of Elements
1

Element Configuration
Single

Operating Mode
ENHANCEMENT MODE

Power Dissipation
1.25kW

Case Connection
DRAIN

FET Type
N-Channel

Transistor Application
SWITCHING

Rds On (Max) @ Id, Vgs
220m ? @ 22A, 10V

Vgs(th) (Max) @ Id
6.5V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds
19000pF @ 25V

Current - Continuous Drain (Id) @ 25°C
44A Tc

Gate Charge (Qg) (Max) @ Vgs
305nC @ 10V

Rise Time
68ns

Drain to Source Voltage (Vdss)
1000V

Drive Voltage (Max Rds On,Min Rds On)
10V

Vgs (Max)
±30V

Fall Time (Typ)
56 ns

Turn-Off Delay Time
90 ns

Continuous Drain Current (ID)
44A

Gate to Source Voltage (Vgs)
30V

Drain-source On Resistance-Max
0.22Ohm

Drain to Source Breakdown Voltage
1kV

Pulsed Drain Current-Max (IDM)
110A

Avalanche Energy Rating (Eas)
2000 mJ

Download datasheets and manufacturer documentation for LITTELFUSE IXFB44N100P.

Datasheets:

ixys-ixfb44n100p-datasheets-5757.pdf

ixys-ixfb44n100p-datasheets-1074.pdf

IXFB44N100P Overview

As a result of avalanche breakdown, energy applied to the MOSFET is called avalanche energy, and the avalanche energy rating is 2000 mJ.CI refers to the capacitance between two input terminals on an op amp with either input grounded, and this device's maximum input capacitance is 19000pF @ 25V.In this device, the drain current (ID) is equal to the continuous current transistor can conduct.This device has 1kV drain-to-source breakdown voltage, where VDS corresponds to the ID at which a specified value of ID flows and VGS equals 1kV.As a result of its turn-off delay time, which is 90 ns, the device has taken time to charge its input capacitance before drain current conduction begins.There is a peak drain current of 110A, its maximum pulsed drain current.Gate-source voltages (VGS) are voltages that fall across the gate-source terminal of FET transistors. VGS is sometimes 30VV.The transistor must receive a 1000V drain to source voltage (Vdss) in order to function.In addition to reducing power consumption, this device uses drive voltage (10V).

IXFB44N100P Features

the avalanche energy rating (Eas) is 2000 mJ
a continuous drain current (ID) of 44A
a drain-to-source breakdown voltage of 1kV voltage
the turn-off delay time is 90 ns
based on its rated peak drain current 110A.
a 1000V drain to source voltage (Vdss)

IXFB44N100P Applications

There are a lot of IXYS
IXFB44N100P applications of single MOSFETs transistors.

DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom and UPS.
