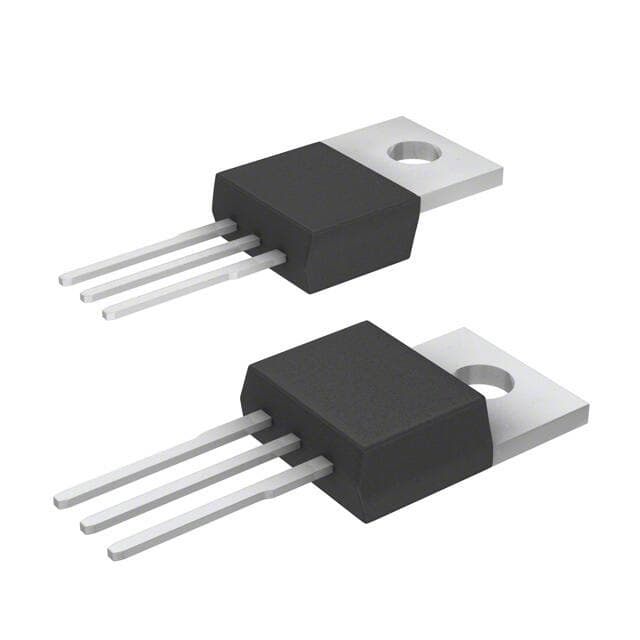

LITTELFUSE IXTP08N50D2
LITTELFUSE IXTP08N50D2

LITTELFUSE IXTP08N50D2

Manufacturer No:

IXTP08N50D2

Manufacturer:

LITTELFUSE

Package:

TO-220-3

Description:

MOSFET (Metal Oxide) N-Channel Tube 4.6 ? @ 400mA, 0V ±20V 312pF @ 25V 12.7nC @ 5V TO-220-3

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXTP08N50D2 information

LITTELFUSE IXTP08N50D2 technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXTP08N50D2.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-220-3
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tube
  • Published
  • 2009
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • Subcategory
  • FET General Purpose Power
  • Technology
  • MOSFET (Metal Oxide)
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • unknown
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 60W Tc
  • Element Configuration
  • Single
  • Power Dissipation
  • 60W
  • FET Type
  • N-Channel
  • Transistor Application
  • AMPLIFIER
  • Rds On (Max) @ Id, Vgs
  • 4.6 ? @ 400mA, 0V
  • Input Capacitance (Ciss) (Max) @ Vds
  • 312pF @ 25V
  • Current - Continuous Drain (Id) @ 25°C
  • 800mA Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 12.7nC @ 5V
  • Vgs (Max)
  • ±20V
  • Continuous Drain Current (ID)
  • 800mA
  • JEDEC-95 Code
  • TO-220AB
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • 500V
  • FET Feature
  • Depletion Mode
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE IXTP08N50D2.

Datasheets:

IXTP08N50D2 Overview


An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 312pF @ 25V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 800mA continuous drain current (ID).A drainage-to-source breakdown voltage corresponds to the voltage at which a specified value of ID flows, where VGS is 500V, and this device has a drainage-to-source breakdown voltage of 500VV.An FET transistor's gate-source voltage, VGS, indicates how much voltage is applied across the transistor's gate-source terminal and it can range from 20V to 1.

IXTP08N50D2 Features


a continuous drain current (ID) of 800mA
a drain-to-source breakdown voltage of 500V voltage


IXTP08N50D2 Applications


There are a lot of IXYS
IXTP08N50D2 applications of single MOSFETs transistors.


  • AC-DC Power Supply
  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
