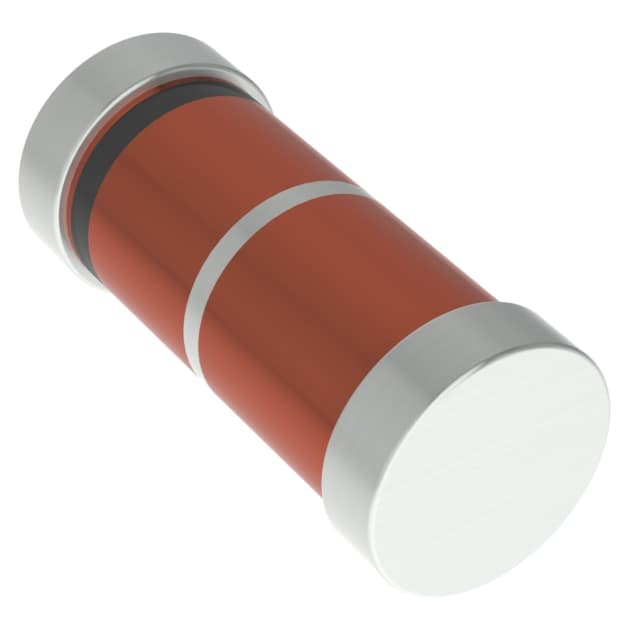

Microchip JANTX1N4148UR-1

Manufacturer No:

JANTX1N4148UR-1

Manufacturer:

Microchip

Package:

DO-213AA (Glass)

Description:

Hi-Reliability, Discrete, Diode and Rectifier

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

JANTX1N4148UR-1 information

Microchip JANTX1N4148UR-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip JANTX1N4148UR-1.

Type
Parameter

Category
Discrete Semiconductor Products

Manufacturer
Microchip Technology

Packaging
Bulk

Part Status
Active

Manufacturer Lead Time
22 Weeks

Capacitance @ Vr, F
4pF @ 0V, 1MHz

Current - Average Rectified (Io)
200mA

Current - Reverse Leakage @ Vr
500 nA @ 75 V

Grade
Military

Mounting Type
Surface Mount

Operating Temperature - Junction
-65°C ~ 175°C

Package / Case
DO-213AA

Qualification
MIL-PRF-19500/116

Reverse Recovery Time (trr)
20 ns

Speed
Small Signal =< 200mA (Io), Any Speed

Supplier Device Package
DO-213AA

Technology
Standard

Voltage - DC Reverse (Vr) (Max)
75 V

Voltage - Forward (Vf) (Max) @ If
1.2 V @ 100 mA

ExportControlClassNumber
EAR99

HtsusCode
8541.10.0070

MoistureSensitivityLevel
1 (Unlimited)

ReachStatus
REACH Unaffected

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip JANTX1N4148UR-1.

Data Sheets:

e0aa9babd0fce85cba68530f09689e41.pdf

This popular 1N4148UR-1 JEDEC registered switching/signal diode features internal metallurgical bonded construction for military grade products per MIL-PRF-19500/116. Previously listed as a CDLL4148 this small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-213AA package. It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc. Microchip also offers a variety of other switching/signal diodes.

Surface mount equivalent of popular JEDEC registered 1N4148 number.

Very low capacitance.

Very fast switching speeds with minimal reverse recovery times.

Hermetically sealed glass construction.

JAN, JANTX, and JANTXV qualification is available per MIL-PRF-19500/116.

RoHS compliant by design.

High frequency data lines.

Low-profile ceramic surface mount package (see package illustration).

RS-232 & RS-422 interface networks.

Ethernet 10 Base T.

LAN.

Computers.

Metallurgically boned.

Double plug construction.
