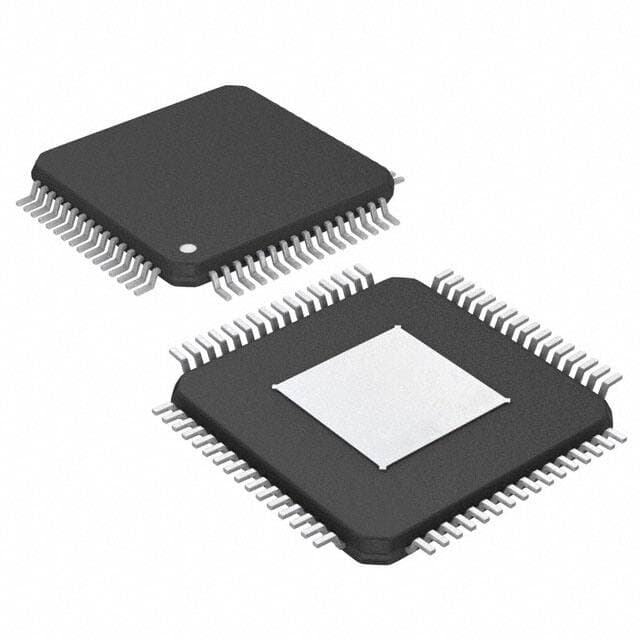

ST L6714

Manufacturer No:

L6714

Manufacturer:

Package:

64-TQFP Exposed Pad

Description:

Controller, Intel VR10, VR11, AMD CPU 0.3V~1.6V 260 Cel QUAD Specialized Voltage Regulator 0°C~70°C L6714 64 Pins 64 Terminations 64-TQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L6714 information

ST L6714 technical specifications, attributes, parameters and parts with similar specifications to ST L6714.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
64-TQFP Exposed Pad

Number of Pins
64

Operating Temperature
0°C~70°C

Packaging
Tray

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

ECCN Code
EAR99

Terminal Finish
NICKEL PALLADIUM GOLD

Applications
Controller, Intel VR10, VR11, AMD CPU

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
2.5W

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
L6714

Pin Count
64

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Max Supply Voltage
13.8V

Min Supply Voltage
10.2V

Analog IC - Other Type
SWITCHING CONTROLLER

Nominal Supply Current
17mA

Output Current
2A

Voltage - Output
0.3V~1.6V

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Rise Time
15ns

Fall Time (Typ)
15 ns

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
170kHz

Height
1.4mm

Length
10mm

Width
10mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST L6714.

Datasheets:

stmicroelectronics-l6714tr-datasheets-9005.pdf

L6714 Overview

There are 4 outputs supported by the voltage regulator. Transport is made easy with the package of 64-TQFP Exposed Pad. Currently, Tray packages are available for shipping. Volatge output for this voltage controller is 0.3V~1.6V. Easy adaptability with the Surface Mount universal mount. It is intended for use in applications such as Controller, Intel VR10, VR11, AMD CPU and others. Ideally, the operating temperature should be set at 0°C~70°C in order to prevent malfunction. It contains terminals with the number 64. The part has received praise for being a SWITCHING CONTROLLER voltage regulator. Initially, the pinout of the alternator regulator begins with 64 pins. In order to find more pin-to-pin solutions, try searching for L6714. Surface Mount is there for mounting on a PCB or another board. There are 64 pins on the power supply regulator. The AC voltage regulator and other Switching Regulator or Controllers play an important role in the industry. It is necessary to have an operating supply voltage of 12V for normal operation. The external regulator should currently output 2A. There is a minimum supply voltage of 10.2Vallowed by this power supply regulator. DC voltage regulators provide maximum supply voltages of 13.8V.

L6714 Features

Widely used in Controller, Intel VR10, VR11, AMD CPU applications
SWITCHING CONTROLLER analog IC
Supply voltage: 12V

L6714 Applications

There are a lot of STMicroelectronics
L6714 Specialized Voltage Regulators applications.

DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
