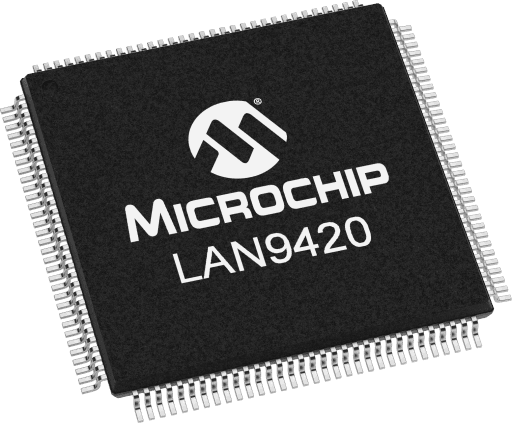

Microchip LAN9420I-NU

Manufacturer No:

LAN9420I-NU

Manufacturer:

Microchip

Package:

128-TQFP

Description:

LAN9420/LAN9420i is a full-featured, Fast Ethernet controller which allows for the easy and cost-effective integration of Fast Ethernet into a PCI-based system.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAN9420I-NU information

Microchip LAN9420I-NU technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN9420I-NU.

Type
Parameter

Checksum Offload
Yes

DownstreamPorts
1

ESD Rating
0

Port Speed
10/100Mbps

Fiber Support
No

Interrupt Pin
1

LEDS
3

LinkMDCableDiag
No

Maximum Speed
33Mhz

Mixed Endian
Yes

NoofEtherPorts
0

Number of VLANs
0

OpVoltage
0

Supply Voltages
0

TX/RX Ram Buffer
N/A

Temperature Range Max
85

Temperature Range Min
-40

Digital I/O Voltage
3.3

Download datasheets and manufacturer documentation for Microchip LAN9420I-NU.

LAN9420/LAN9420i is a full-featured, Fast Ethernet controller which allows for the easy and cost-effective integration of Fast Ethernet into a PCI-based system. LAN9420/LAN9420i consists of a PCI Local Bus Specification Revision 3.0 compliant interface, DMA Controller, Ethernet MAC, and 10/100 Ethernet PHY.

LAN9420/LAN9420i provides full IEEE 802.3 compliance and all internal components support full/half-duplex 10BASE-T, 100BASE-TX, and manual full-duplex flow control. The descriptor based scatter-gather DMA supports usage of zero-copy drivers, effectively increasing throughput while decreasing Host load. The integrated IRQ deassertion timer allows a minimum IRQ deassertion time to be set, providing reduced Host load and greater control over service routines. Automatic 32-bit CRC generation/checking, automatic payload padding, and 2K jumbo packets (2048 byte) are supported.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Optimized for embedded applications with 32-bit RISC CPUs

Integrated descriptor based scatter-gather DMA and IRQ deassertion timer effectively increase network throughput and reduce CPU loading

Integrated Ethernet MAC with full-duplex support

Integrated 10/100 Ethernet PHY with HP Auto-MDIX Support

32-bit, 33MHz, PCI 3.0 compliant interface

Reduced power operating modes with PCI Power Management Specification 1.1 compliance

Supports multiple audio & video streams over Ethernet

Fully compliant with IEEE 802.3/802.3u

Integrated Ethernet MAC and PHY

10BASE-T and 100BASE-TX support

Full- and Half-duplex support

Full-duplex flow control

Preamble generation and removal

Automatic 32-bit CRC generation and checking

Automatic payload padding and pad removal

Loop-back modes

One 48-bit perfect address

64 hash-filtered multicast addresses

Pass all multicast

Promiscuous mode

Inverse filtering

Pass all incoming with status report

Wakeup packet support

Auto-negotiation

Automatic polarity detection and correction

Supports HP Auto-MDIX

Supports energy-detect power down

Support for 3 status LEDs

Receive and transmit TCP checksum offload

PCI Local Bus Specification Revision 3.0 compliant

32-bit/33-MHz PCI bus

Descriptor based scatter-gather DMA enables zero-copy drivers

Supports PCI Bus Power Management Interface Specification, Revision 1.1

Supports optional wake from D3cold (via configuration strap option when Vaux is available)

Wake on LAN

Wake on link status change (energy detect)

Magic packet wakeup

3 programmable GPIO pins

2 GPO pins

Serial interface provided for EEPROM

Used to store PCI and MAC address configuration values

Big/Little/Mixed endian support for registers, descriptors, and buffers

IRQ deassertion timer

General purpose timer

Integrated 1.8V regulator

Available in 128-pin VTQFP RoHS Compliant package

Available in commercial & industrial temperature ranges

Cable, satellite, and IP set-top boxes
Digital televisions
Digital video recorders
Home gateways
Digital media clients/servers
Industrial automation systems
Industrial/single board PC
Kiosk/POS enterprise equipment
