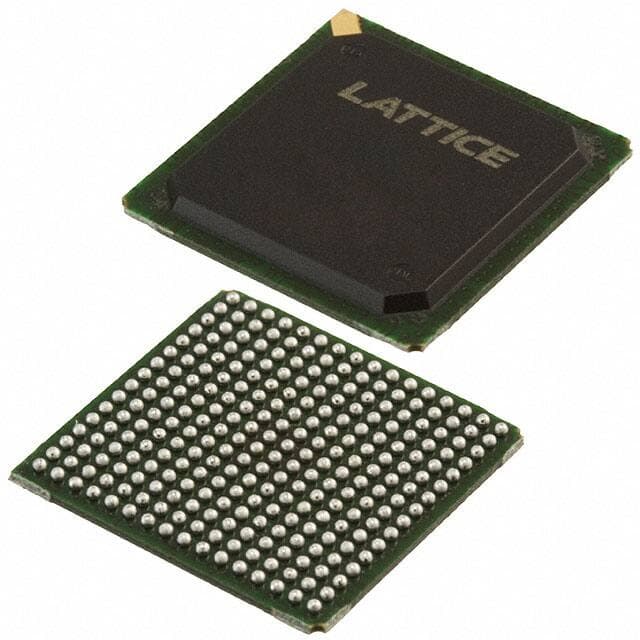

LATTICE LC5256MV-4FN256C

Manufacturer No:

LC5256MV-4FN256C

Manufacturer:

LATTICE

Package:

256-BGA

Description:

1mm PMIC ispXPLD® 5000MV Series LC5256 333MHz 3.3V 256-BGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LC5256MV-4FN256C information

LATTICE LC5256MV-4FN256C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LC5256MV-4FN256C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
256-BGA

Operating Temperature
0°C~90°C TJ

Packaging
Tray

Series
ispXPLD® 5000MV

Published
2000

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
256

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
YES

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
250

Supply Voltage
3.3V

Terminal Pitch
1mm

Frequency
333MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
256

Operating Supply Voltage
3.3V

Programmable Type
In System Programmable

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Operating Supply Current
26mA

Number of I/O
141

Nominal Supply Current
26mA

RAM Size
16kB

Memory Type
EEPROM, SRAM

Propagation Delay
4 ns

Turn On Delay Time
4 ns

Number of Logic Elements/Cells
8

Number of Gates
75000

Number of Programmable I/O
100

Output Function
MACROCELL

Number of Macro Cells
256

JTAG BST
YES

Voltage Supply - Internal
3V~3.6V

Length
17mm

Height Seated (Max)
2.1mm

Width
17mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for LATTICE LC5256MV-4FN256C.

LC5256MV-4FN256C Overview

Currently, there are 256 macro cells, which are low-power cell sites (towers, antennas, masts) that serve as radio coverage.There is a 256-BGA package containing it.There are 141 I/Os on the board.Terminations of devices are set to 256.BOTTOM is the terminal position of this electrical part.A voltage of 3.3Vprovides power to the device.There is a part in the family Programmable Logic Devices.It is recommended that the chip be packaged by Tray.The device operates at a temperature of 0°C~90°C TJ in order to ensure its reliability.Ideally, the chip should be mounted by Surface Mount.The ispXPLD® 5000MV series FPGA is one of these types.In this chip, the 256 pins are programmed.If you use this device, you will also find YES.The LC5256 can be used to identify its related parts.For digital circuits, there are 75000 gates. These devices serve as building blocks.Optimal efficiency requires a supply voltage of 3.3V.For data storage, EEPROM, SRAM is adopted.A Surface Mount is mounted on this electronic component.There is a maximum supply voltage of 3.6V when the device is operating.Normally, it operates with a voltage of 3VV as its minimum supply voltage.There are a total of 100 Programmable I/Os.This can be achieved at a frequency of 333MHz.In order to form a fundamental building block, there are 8 logic elements or cells.

LC5256MV-4FN256C Features

256-BGA package
141 I/Os
The operating temperature of 0°C~90°C TJ
256 pin count

LC5256MV-4FN256C Applications

There are a lot of Lattice Semiconductor Corporation
LC5256MV-4FN256C CPLDs applications.

Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
Digital designs
Field programmable gate
