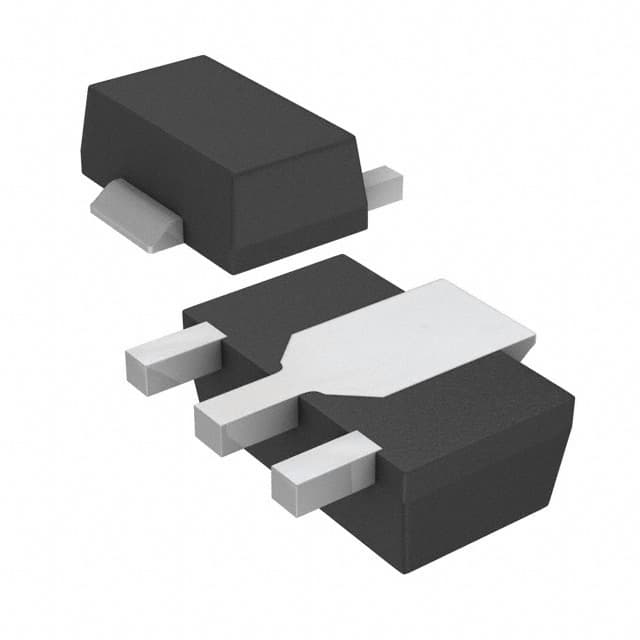

ST LDK220U50R

Manufacturer No:

LDK220U50R

Manufacturer:

Package:

TO-243AA

Description:

200 mA low quiescent current and low noise LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LDK220U50R information

ST LDK220U50R technical specifications, attributes, parameters and parts with similar specifications to ST LDK220U50R.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
4 Weeks

Samacsys Manufacturer
STMicroelectronics

Dropout Voltage1-Nom
1 V

Input Voltage-Max
13.2 V

Input Voltage-Min
6 V

JESD-30 Code
R-PSSO-F3

Length
4.5 mm

Load Regulation-Max
0.02985%

Number of Functions
1

Number of Terminals
3

Operating Temperature TJ-Max
125 °C

Operating Temperature TJ-Min
-40 °C

Output Current1-Max
0.2 A

Output Voltage1-Max
5.15 V

Output Voltage1-Min
4.85 V

Output Voltage1-Nom
5 V

Package Body Material
PLASTIC/EPOXY

Package Code
SOF

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Packing Method
TR

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Regulator Type
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Seated Height-Max
1.6 mm

Surface Mount
YES

Terminal Form
FLAT

Terminal Pitch
1.495 mm

Terminal Position
SINGLE

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Voltage Tolerance-Max
3%

Width
2.445 mm

Download datasheets and manufacturer documentation for ST LDK220U50R.

Datasheets:

en.DM00109416.pdf

LDK220U50R Overview

Deliveries are in Tape & Reel (TR) cases. The package is in a TO-243AA case. Basically, the voltage regulator chip is made up of 3 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C TJ degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 200mA on this regulator. As an FYI, this IC voltage regulator has the basic part number LDK220.

LDK220U50R Features

LDK220U50R Applications

There are a lot of STMicroelectronics
LDK220U50R Linear Voltage Regulators applications.

Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
