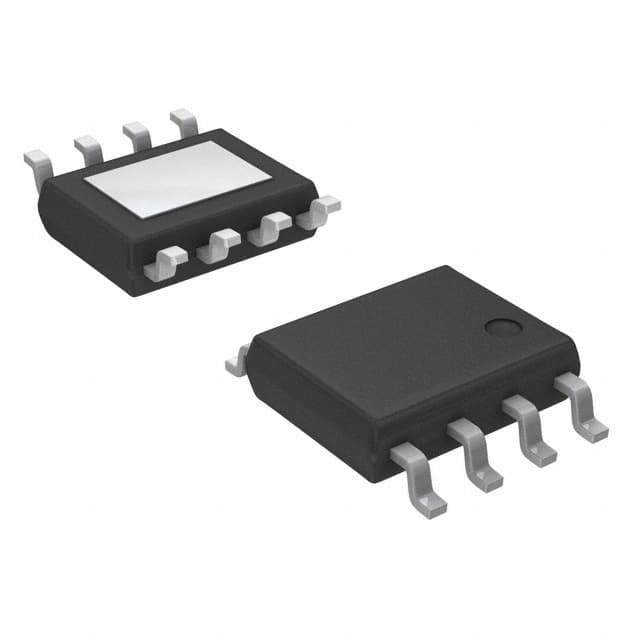

ST LED2001PHR

Manufacturer No:

LED2001PHR

Manufacturer:

Package:

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

Adjustable PMIC LED2001 8 Pin 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LED2001PHR information

ST LED2001PHR technical specifications, attributes, parameters and parts with similar specifications to ST LED2001PHR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width) Exposed Pad

Number of Pins
8

Operating Temperature
-40°C~150°C TJ

Packaging
Cut Tape (CT)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Type
DC DC Regulator

Terminal Finish
Matte Tin (Sn)

Applications
Lighting, Signage

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LED2001

Number of Outputs
1

Output Type
Adjustable

Max Output Current
4A

Max Supply Voltage
18V

Min Supply Voltage
3V

Power Dissipation
2W

Max Supply Current
2.5mA

Max Output Voltage
-1V

Topology
Step-Down (Buck)

Min Input Voltage
3V

Max Input Voltage
18V

Output Current per Channel
4A

Min Output Voltage
18V

Internal Switch(s)
Yes

Dimming
PWM

Number of Segments
3

Switching Frequency
850kHz

Height
1.55mm

Length
5mm

Width
4mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST LED2001PHR.

Datasheets:

stmicroelectronics-led2001phr-datasheets-7123.pdf

LED2001PHR Overview

As a result of its 8-SOIC (0.154, 3.90mm Width) Exposed Pad package, it helps to save board space on the board. It has 1 outputs for LED drivers.We are using Surface Mount as the mounting method.With high efficiency, it emerges as a DC DC Regulator.It is possible for the led driver ic to function normally at -40°C~150°C TJ.It is clear that Lighting, Signage will benefit from the program.The base is configured with 8 pins.There are 3 segments in it.This is mounted by Surface Mount.You can find this LED driver under the base part number LED2001.18V is an acceptable maximum value for the supply voltage.This device operates with a minimum input voltage of 3V volts.The system operates at a minimum supply voltage of 3V in order to achieve maximum efficiency.Currently, the supply current can only reach 18V.When the supply current should be less than 2.5mA, the device will provide high efficiency.4A is the maximum current the load can handle.This electronic component can fully perform when the switching frequency is 850kHz.LED drivers deliver all their benefits with a maximum output current of 4A.It is recommended that the output voltage be no higher than -1V.A voltage of 18V is maintained as the minimal voltage it outputs.There is a type Adjustable output on this device.

LED2001PHR Features

Available in the 8-SOIC (0.154, 3.90mm Width) Exposed Pad package
Operating temperature of -40°C~150°C TJ
Switching frequency of 850kHz

LED2001PHR Applications

There are a lot of STMicroelectronics
LED2001PHR LED Driver ICs applications.

High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
A- lamps
General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
Industrial LED Lighting: Image Recognition Devices
Stage Lighting and Signage
