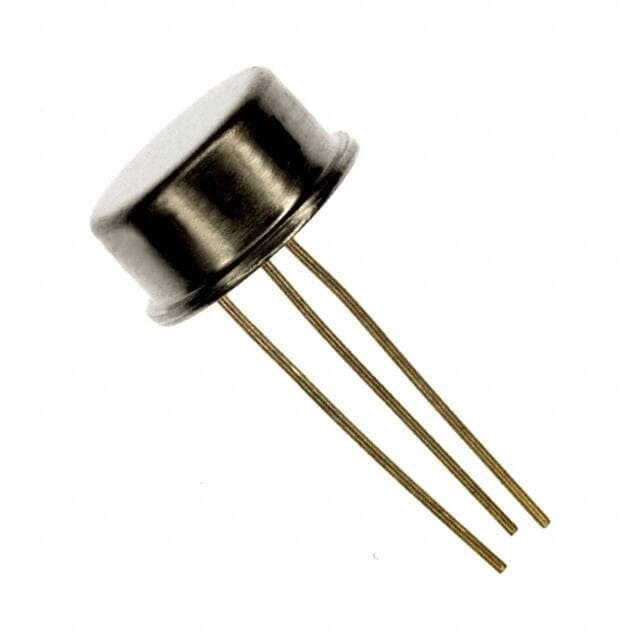

TI LM117H
TI LM117H

TI LM117H

Manufacturer No:

LM117H

Manufacturer:

TI

Package:

TO-205AD, TO-39-3 Metal Can

Description:

Adjustable Gold LM117 PMIC 3 TO-205AD, TO-39-3 Metal Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM117H information

TI LM117H technical specifications, attributes, parameters and parts with similar specifications to TI LM117H.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 5 days ago)
  • Factory Lead Time
  • 6 Weeks
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-205AD, TO-39-3 Metal Can
  • Number of Pins
  • 3
  • Weight
  • 4.535924g
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tube
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Power Dissipation
  • 2W
  • Technology
  • BIPOLAR
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Number of Functions
  • 1
  • Base Part Number
  • LM117
  • Pin Count
  • 3
  • Number of Outputs
  • 1
  • Output Voltage
  • 37V
  • Output Type
  • Adjustable
  • Max Output Current
  • 500mA
  • Output Configuration
  • Positive
  • Current - Output
  • 1.5A
  • Quiescent Current
  • 5mA
  • Max Output Voltage
  • 37V
  • Number of Regulators
  • 1
  • Min Input Voltage
  • 4.2V
  • Protection Features
  • Over Current, Over Temperature, Short Circuit
  • PSRR
  • 80dB ~ 65dB (120Hz)
  • Reference Voltage
  • 1.25V
  • Dropout Voltage
  • 2.2V
  • Dropout Voltage1-Nom
  • 1.2V
  • Min Output Voltage
  • 1.2V
  • Power Supply Rejection Ratio (PSRR)
  • 80dB
  • Height
  • 0m
  • Length
  • 8.255mm
  • Width
  • 8.255mm
  • Thickness
  • 4.445mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TI LM117H.

Datasheets:

LM117H Description

The LM117H is a three-terminal adjustable positive voltage regulator with a 1.2V to 37V output range that can produce more than 1.5A. The LM117H regulator is extremely simple to use, with only two external resistors required to set the output voltage. In addition, line and load regulations are superior to stationary regulators.


LM117H Features

  • Guaranteed 1% output voltage tolerance (LM317A)

  • Guaranteed max. 0.01%/V line regulation (LM317A)

  • Guaranteed max. 0.3% load regulation (LM117)

  • Guaranteed 1.5A output current

  • P+ Product Enhancement tested

  • 80 dB ripple rejection

  • Adjustable output down to 1.2V

  • Current limit constant with the temperature

  • Output is short-circuit protected


LM117H Applications

  • Used for Positive voltage regulations

  • Current limiting circuits

  • Reverse polarity circuits

  • Variable power supply

  • Used in motor control circuits



User Guide
