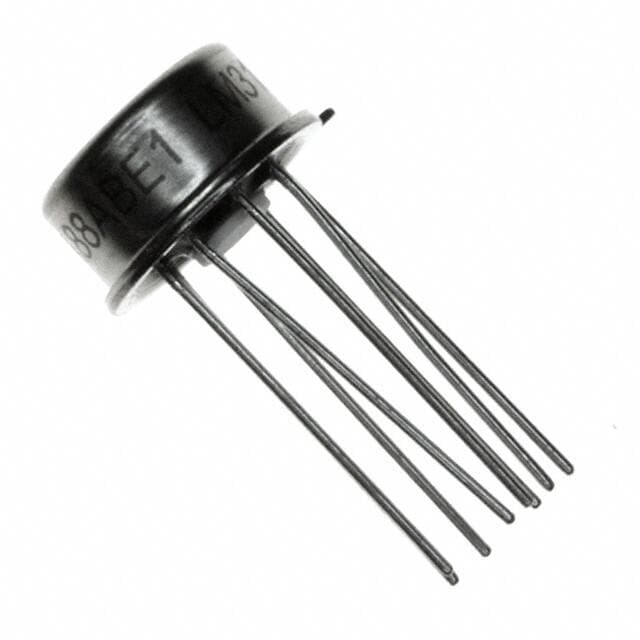

TI LM311H/NOPB

Manufacturer No:

LM311H/NOPB

Manufacturer:

Package:

TO-99-8 Metal Can

Description:

Through Hole Box 200 ns ?s Linear Comparators 106.02dB dB 250nA pA 7.5mA ?A 7.5mV mV Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM311H/NOPB information

TI LM311H/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM311H/NOPB.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
6 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-99-8 Metal Can

Number of Pins
8

Operating Temperature
0°C~70°C

Packaging
Box

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Type
General Purpose

Subcategory
Comparator

Max Power Dissipation
500mW

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Number of Functions
1

Supply Voltage
15V

Base Part Number
LM311

Pin Count
8

Output Type
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL

Nominal Supply Current
7.5mA

Power Dissipation
500mW

Max Supply Current
-5mA

Propagation Delay
100 ns

Quiescent Current
7.5mA

Turn On Delay Time
100 ns

Response Time
200 ns

Voltage - Supply, Single/Dual (±)
5V~36V ±2.5V~18V

Input Offset Voltage (Vos)
7.5mV

Neg Supply Voltage-Nom (Vsup)
-15V

Voltage Gain
106.02dB

Average Bias Current-Max (IIB)
0.3?A

Input Bias Current
250nA

Voltage - Input Offset (Max)
7.5mV @ ±15V

Current - Input Bias (Max)
0.25?A @ ±15V

Height
5.72mm

Length
9.08mm

Width
9.08mm

Thickness
4.4mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LM311H/NOPB.

Datasheets:

texasinstruments-lm311hnopb-datasheets-3791.pdf

texasinstruments-lm311hnopb-datasheets-3792.pdf

texasinstruments-lm311hnopb-datasheets-3793.pdf

LM311H/NOPB Overview

A convenient packaging is provided in the form of TO-99-8 Metal Can .The comparator has a type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output.As a result, it is designed with Box package.8 terminals are found on the comparator.Electronic comparator is a component of the Comparator family.With a voltage of 15V supplied, the comparator is capable of performing a wide range of demanding tasks.A comparator of this type is typically of type General Purpose .The total number of elements is 1 .There are 8 pins on this board.Electronic comparator is recommended to mount the device using type Through Hole .As a precaution, it is recommended to set the operating temperature to 0°C~70°C to prevent malfunctions.Electronic comparator has 8 pins.You can search LM311 if you are looking for more pin-to-pin solutions.In this comparator, the quiescent current is 7.5mA .The board has a Through Hole for mounting on a PCB or any other board.Electronic comparator is recommended that the nominal supply current for the device be set to 7.5mA .If the current supply exceeds -5mA , the comparator could malfunction.In accordance with the voltage formula, the part's voltage gain is 106.02dB .

LM311H/NOPB Features

DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output capability
General Purpose IC
Employing 1 elements
Operates under 0°C~70°C
Quiescent Current: 7.5mA
Voltage Gain: 106.02dB

LM311H/NOPB Applications

There are a lot of Texas Instruments
LM311H/NOPB linear comparators applications.

General-Purpose Portable Devices
General-Purpose, Low-Voltage Applications
Self-diagnostics
Lithium ion battery monitoring
Battery management and protection
Current and voltage sensing
Analog front end
Power management
Point of load regulators
DC/DC and AC/DC power supplies
