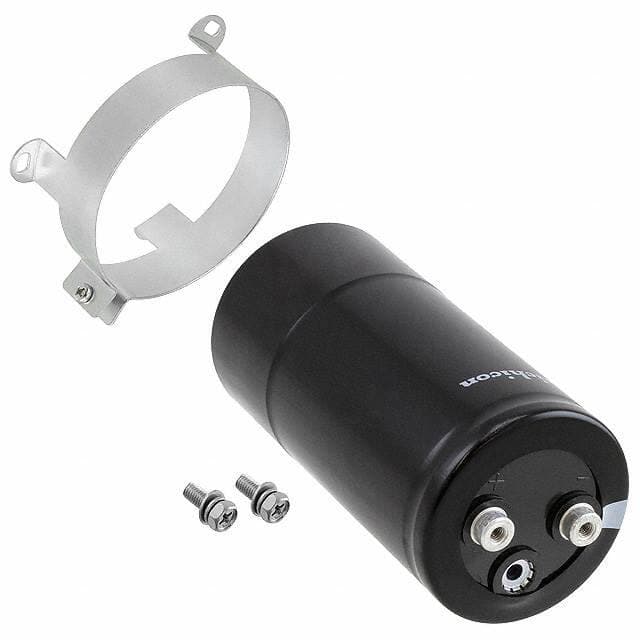

NICHICON LNT2G332MSEG

Manufacturer No:

LNT2G332MSEG

Manufacturer:

NICHICON

Package:

Radial, Can - Screw Terminals

Description:

LNT 3300μF Capacitor ±20% Bulk Chassis Mount 15.4A 2.500Dia 63.50mm -25°C~105°C Polar 28.6004mm Radial, Can - Screw Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LNT2G332MSEG information

NICHICON LNT2G332MSEG technical specifications, attributes, parameters and parts with similar specifications to NICHICON LNT2G332MSEG.

Type
Parameter

Factory Lead Time
21 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Radial, Can - Screw Terminals

Terminal Shape
BINDING POST

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
LNT

Published
2012

Size / Dimension
2.500Dia 63.50mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Screw

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
400V

HTS Code
8532.22.00

Capacitance
3300μF

Lead Pitch
28.6004mm

Lead Spacing
1.126 28.60mm

Rated (DC) Voltage (URdc)
400V

Lifetime @ Temp
5000 Hrs @ 105°C

Leakage Current
3.44mA

Ripple Current
15.4A

Polarization
Polar

Life (Hours)
5000 hours

Tan Delta
0.2

Ripple Current @ Low Frequency
15.4A @ 120Hz

Ripple Current @ High Frequency
21.56A @ 10kHz

Diameter
63.5mm

Height Seated (Max)
5.197 132.00mm

Length
130mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LNT2G332MSEG.

LNT2G332MSEG Overview

Ripple current at full charge is 21.56A @ 10kHz.It is 15.4A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 5.197 132.00mm.It is recommended that the device's rated voltage (URdc) be set to 400V (400V).It is recommended that the operating temperature be kept at -25°C~105°C to achieve high efficiency.

LNT2G332MSEG Features

the ripple current is 21.56A @ 10kHz.
the ripple current is 15.4A @ 120Hz.
an operating temperature of -25°C~105°C

LNT2G332MSEG Applications

There are a lot of Nichicon
LNT2G332MSEG applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
