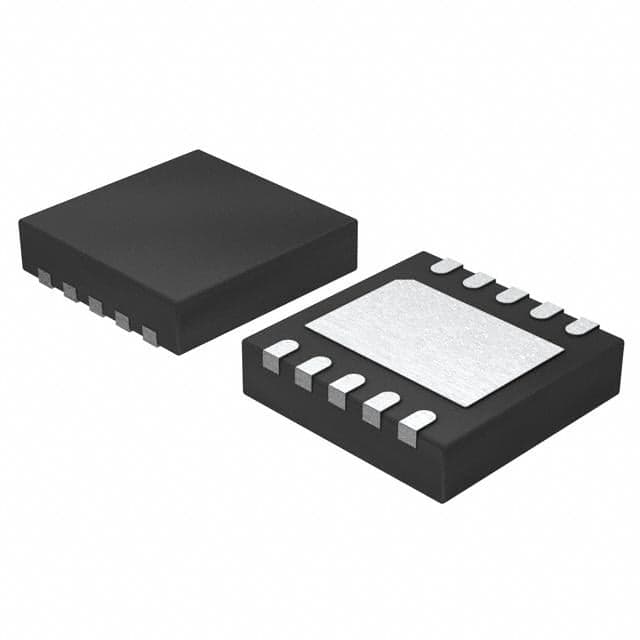

ADI LT3045EDD#PBF

Manufacturer No:

LT3045EDD#PBF

Manufacturer:

ADI

Package:

DFN

Description:

Adjustable PMIC DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT3045EDD#PBF information

ADI LT3045EDD#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LT3045EDD#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Package / Case
DFN

Number of Pins
10

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Number of Outputs
1

Output Type
Adjustable

Max Supply Voltage
20V

Min Supply Voltage
2V

Accuracy
1 %

Voltage - Output
15V

Number of Regulators
1

Dropout Voltage
260mV

Min Current Limit
570mA

Max Junction Temperature (Tj)
125°C

Height
800μm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT3045EDD#PBF.

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LT3045EDD#PBF DESCRIPTION

The LT3045 is a high performance low dropout linear regulator featuring LTC's ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applica tions.Designed as a precision current reference followed by a high performance voltage buffer the LT3045 can be easily paralleled to further reduce noiseincrease output current and spread heat on the PCB

LT3045EDD#PBF FEATURES

Ultralow RMS Noise:0.8uVms(10Hz to100kHz) Ultralow Spot Noise: 2nV/Hz at 10kHz Utrahigh PSRP:76dB at1MHz Output Current:500mA

Wide Input Voltage Range:1.8Vto20V

Single Capacitor Improves Noise and PSRR100uA SET Pin Current:±1% Initial Accuracy Single Resistor Programs Output Voltage High Bandwidth:1MHz

Programmable Current Limit Low Dropout Voltage:260mV Output Voltage Range:0Vto15V Programmable Power Good Fast Start-Up Capability Precision Enable/UVLO

Parallelable for Lower Noise and Higher Current Internal Current Limit with Foldback

Minimum Output Capacitor: 10uF Ceramic

Reverse-Battery and Reverse-Current Protection

12-Lead MSOP and 10-Lead 3mm x 3mm DFN Packages AEC-Q100 Qualified for Automotive Applications

LT3045EDD#PBF APPLICATIONS

RF Power Supplies: PLLsVCOsMixersLNAsPAs Very Low Noisenstrumentation

High Speed/High Precision Data Converters Medica Applications:Imaging,Diagnostics Precision Power Supplies

Post-Regulator for Switching Supplies
