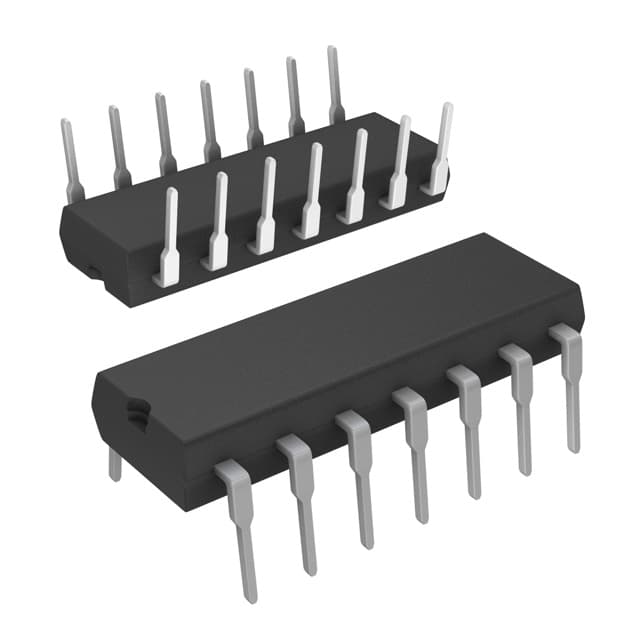

ADI LTC1064-3CN#PBF

Manufacturer No:

LTC1064-3CN#PBF

Manufacturer:

ADI

Package:

14-DIP (0.300, 7.62mm)

Description:

Tube Active Filters Active 14 ROHS3 Compliant DUAL

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC1064-3CN#PBF information

ADI LTC1064-3CN#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC1064-3CN#PBF.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
14-DIP (0.300, 7.62mm)

Surface Mount
NO

Packaging
Tube

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
CMOS

Voltage - Supply
±2.37V~8V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
7.5V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC1064

Pin Count
14

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
+-7.5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.37V

Supply Current-Max (Isup)
32mA

Filter Type
Bessel, Low Pass Switched Capacitor

Neg Supply Voltage-Nom (Vsup)
-7.5V

Neg Supply Voltage-Max (Vsup)
-8V

Filter Order
8th

Frequency - Cutoff or Center
95kHz

Neg Supply Voltage-Min (Vsup)
-2.37V

Response
LOWPASS

Number of Filters
1

Poles and Zeros
8 AND 0

Height Seated (Max)
3.937mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC1064-3CN#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc10643cswtrpbf-datasheets-3323.pdf

LTC1064-3CN#PBF Overview

A 14-DIP (0.300, 7.62mm) package contains it.The package is Tube-shaped.The gadget mounts using a Through Hole-type.Part Bessel, Low Pass Switched Capacitor has a Bessel, Low Pass Switched Capacitor filter type.A power source of ±2.37V~8V should be able to power it.In total, it has 14 pins.There is a LTC1064 in the best component of the device.In cutoff or center, the device is at 95kHz frequency.Reflow reaches its peak temperature at NOT SPECIFIED.At all times, 7.5V is used to power the component.Filters are characterized by the figure 1.8V reaches maximum supply voltage (Vsup).+-7.5V supplies are present in the device.At the moment, 85°C is the highest working temperature.Vsup must be greater than 2.37V when it comes to the supply voltage.Filter can wFilterhstand a maximum supply temperature of 32mA.Filter should be warmer than -40°C when operating.

LTC1064-3CN#PBF Features

Supply voltage of 7.5V

LTC1064-3CN#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC1064-3CN#PBF active filters applications.

Edge Detectlon/Enhancement
Pattern Matching
Real Time Video Filters
1-D and 2-D FIR Filters
Radar/Sonar
Adaptive Filters
Echo Cancellation
Complex Multiply-Add
Sample Rate Converters
Digital Down Conversion
