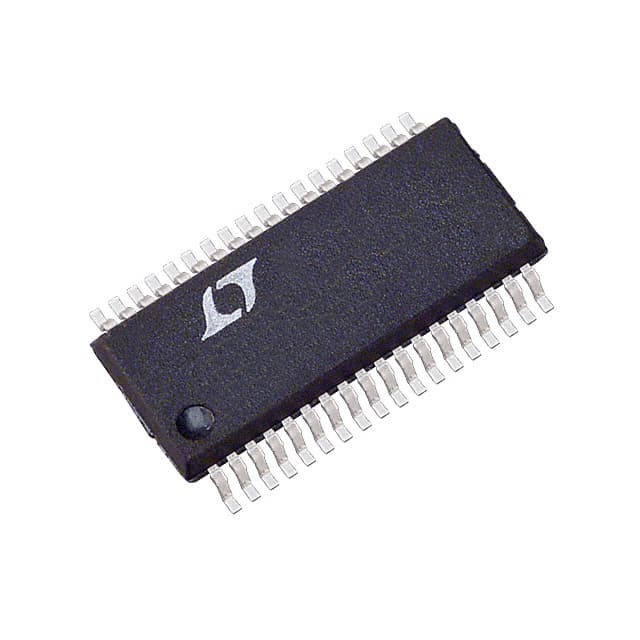

ADI LTC1960CG#PBF

Manufacturer No:

LTC1960CG#PBF

Manufacturer:

ADI

Package:

36-SSOP (0.209, 5.30mm Width)

Description:

LTC1960 36-SSOP (0.209, 5.30mm Width) Tube 36 Terminals 36 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC1960CG#PBF information

ADI LTC1960CG#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC1960CG#PBF.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
36-SSOP (0.209, 5.30mm Width)

Surface Mount
YES

Operating Temperature
0°C~70°C TA

Packaging
Tube

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
ALSO OPERATES IN AVERAGE CURRENT MODE

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
LTC1960

Pin Count
36

JESD-30 Code
R-PDSO-G36

Output Voltage
5.2V

Input Voltage-Nom
20V

Interface
SPI

Analog IC - Other Type
BATTERY CHARGE CONTROLLER

Input Voltage (Min)
6V

Control Mode
CURRENT-MODE

Control Technique
CONSTANT OFF TIME

Switcher Configuration
PUSH-PULL

Switching Frequency-Max
345kHz

Fault Protection
Over Current

Battery Chemistry
Smart Batteries

Number of Cells
2

Voltage - Supply (Max)
28V

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC1960CG#PBF.

LTC1960CG#PBF Overview

In the Tube package, you will find it.To make it easier for you, it is included with the 36-SSOP (0.209, 5.30mm Width) package.There is a mounting type of Surface Mount for this device.Keeping the temperature at 0°C~70°C TA will ensure reliable performance.BATTERY CHARGE CONTROLLER is the analog IC used in this device.This part number LTC1960 can be used to find its related parts.In total, there are 36 terminations.In total, it has 36 pins.Its maximum supply voltage is 28V.The 5.2V output voltage allows for high efficiency.20V is the input voltage for the device.The device can also generate the additional features of ALSO OPERATES IN AVERAGE CURRENT MODE.Voltages below 6V volts are minimal.The part's switching frequency is at most 345kHz.

LTC1960CG#PBF Features

Addtional features of ALSO OPERATES IN AVERAGE CURRENT MODE
36-SSOP (0.209, 5.30mm Width) package

LTC1960CG#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC1960CG#PBF Battery Chargers ICs applications.

Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
Truck dealers
Floor scrubber
