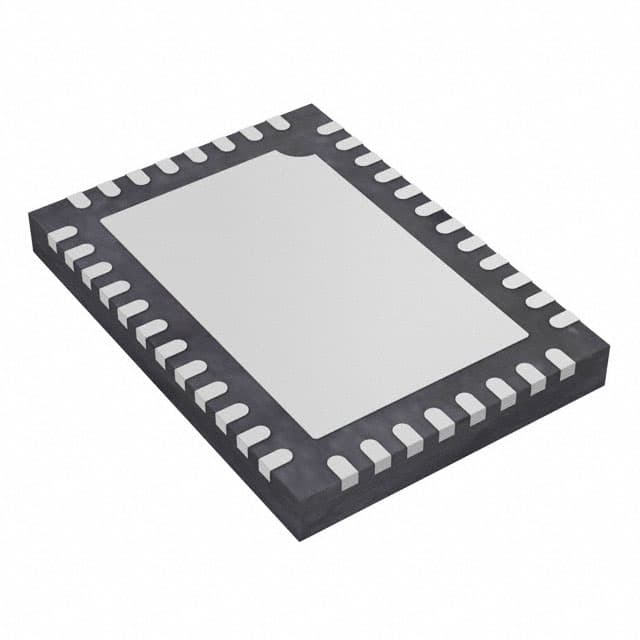

ADI LTC6951IUHF-1#PBF

Manufacturer No:

LTC6951IUHF-1#PBF

Manufacturer:

ADI

Package:

40-WFQFN Exposed Pad

Description:

3.3V 2.7GHz LTC6951 Clock Generators 40 Pins 40-WFQFN Exposed Pad 40 Terminals Surface Mount 3.15V~3.45V Tube

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC6951IUHF-1#PBF information

ADI LTC6951IUHF-1#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC6951IUHF-1#PBF.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
40-WFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~105°C

Packaging
Tube

Published
2013

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
40

Terminal Finish
Matte Tin (Sn)

Technology
CMOS

Voltage - Supply
3.15V~3.45V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC6951

Output
CML, LVDS

Pin Count
40

Supply Voltage-Max (Vsup)
3.45V

Number of Circuits
1

Analog IC - Other Type
PLL FREQUENCY SYNTHESIZER

Frequency (Max)
2.7GHz

Input
Clock

Ratio - Input:Output
1:5

Differential - Input:Output
Yes/Yes

Divider/Multiplier
Yes/No

Length
7mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC6951IUHF-1#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc6951iuhfpbf-datasheets-0843.pdf

LTC6951IUHF-1#PBF Overview

This clock IC is packaged using the Tube method. The 40-WFQFN Exposed Pad package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of NOT SPECIFIED. In it, there are 40 terminations to be found. This time clock generator should be voltaged at 3.3V. A clock generator's input is called Clock and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 2.7GHz is available. With the Surface Mount, it is easy to install this electric component on the panel. Clock generators can take up to 3.45V of power as a maximum supply voltageThis clock PLL works with a supply voltage of 3.15V~3.45V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~105°C. A frequency synthesizer which is compatible with the CML, LVDS logic levels is presented here. Microprocessors are specifically designed to use this clock-generating IC, which has a 40-bit output. This part number LTC6951 is related to the following electrical components. PLL FREQUENCY SYNTHESIZER-RF synthesizers are analog integrated circuits that can be classified as analog ICs.

LTC6951IUHF-1#PBF Features

Available in the 40-WFQFN Exposed Pad
Supply voltage of 3.3V

LTC6951IUHF-1#PBF Applications

There are a lot of Linear Technology/Analog Devices
LTC6951IUHF-1#PBF Clock Generators applications.

Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
