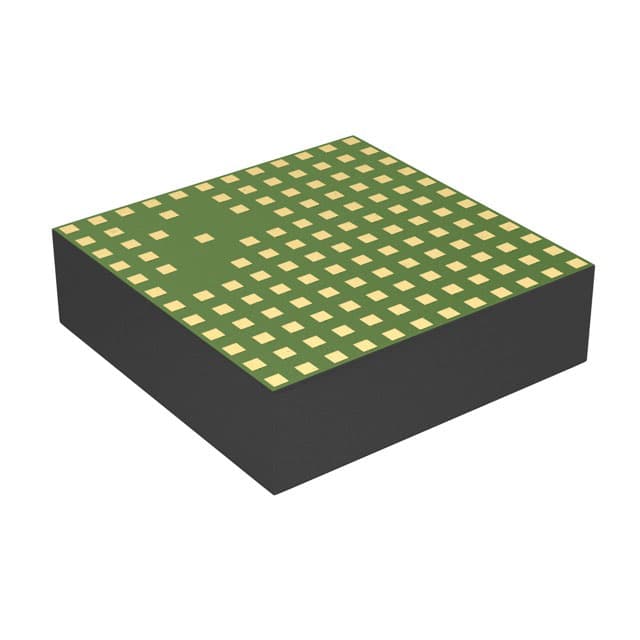

ADI LTM4613MPV#PBF

Manufacturer No:

LTM4613MPV#PBF

Manufacturer:

ADI

Package:

133-BLGA Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTM4613MPV#PBF information

ADI LTM4613MPV#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTM4613MPV#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
133-BLGA Module

Surface Mount
YES

Number of Pins
133

Operating Temperature
-55°C~125°C

Packaging
Tray

Series
µModule®

Published
2011

Size / Dimension
0.59Lx0.59W x 0.17 H 15.0mmx15.0mmx4.3mm

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
133

ECCN Code
EAR99

Type
Non-Isolated PoL Module

Terminal Finish
Gold (Au)

Applications
ITE (Commercial)

Subcategory
Switching Regulator or Controllers

Terminal Position
BOTTOM

Terminal Form
BUTT

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Base Part Number
LTM4613

Pin Count
133

Number of Outputs
1

Qualification Status
Not Qualified

Efficiency
96%

Voltage - Input (Max)
36V

Output Voltage
15V

Output Type
Adjustable

Max Output Current
8A

Voltage - Output 1
12V

Voltage - Input (Min)
5V

Input Voltage-Nom
24V

Operating Supply Current
78mA

Output Current
8A

Max Output Voltage
15V

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Min Output Voltage
3.3V

Switcher Configuration
BUCK

Switching Frequency-Max
600kHz

Height
4.318mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTM4613MPV#PBF.

Datasheets:

lineartechnologyanalogdevices-ltm4613eypbf-datasheets-8542.pdf

PCN Assembly/Origin:

lineartechnologyanalogdevices-ltm8040evpbf-pcnassemblyorigin-1848.pdf

Description:
The Analog Devices LTM4613MPV#PBF is a high-efficiency, high-density, synchronous step-down DC/DC converter module. It is designed to provide a regulated output voltage from a wide input voltage range of 4.5V to 28V. The module is capable of delivering up to 8A of continuous output current with a maximum output power of 96W.

Features:
• Wide input voltage range of 4.5V to 28V
• Output voltage adjustable from 0.6V to 5.5V
• Maximum output current of 8A
• Maximum output power of 96W
• High efficiency up to 95%
• Low quiescent current of only 10µA
• Over-temperature and over-current protection
• RoHS compliant

Applications:
The LTM4613MPV#PBF is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used in applications such as LED lighting, motor control, power supplies, and battery charging.
