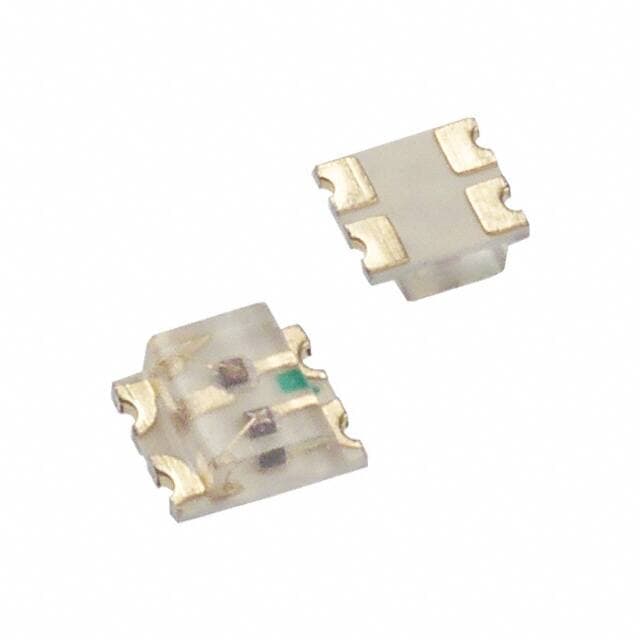

LITE-ON LTST-C19HE1WT

Manufacturer No:

LTST-C19HE1WT

Manufacturer:

LITE-ON

Package:

0606 (1616 Metric)

Description:

LED RGB DIFFUSED CHIP SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTST-C19HE1WT information

LITE-ON LTST-C19HE1WT technical specifications, attributes, parameters and parts with similar specifications to LITE-ON LTST-C19HE1WT.

Type
Parameter

Mfr
Lite-On Inc.

Package
Tape & Reel (TR),Digi-Reel®,Cut Tape (CT)

Product Status
Active

Color
Red, Green, Blue (RGB)

Configuration
Common Anode

Lens Color
White

Lens Transparency
Diffused

Millicandela Rating
112.5mcd Red, 281mcd Green, 104mcd Blue

Lens Style
Rectangle with Flat Top

Lens Size
1.15mm x 1.60mm

Voltage - Forward (Vf) (Typ)
2.1V Red, 3.35V Green, 3.35V Blue

Current - Test
20mA Red, 20mA Green, 20mA Blue

Viewing Angle
130°

Mounting Type
Surface Mount

Wavelength - Dominant
624nm Red, 525nm Green, 470nm Blue

Wavelength - Peak
632nm Red, 520nm Green, 468nm Blue

Package / Case
0606 (1616 Metric)

Supplier Device Package
Chip LED

Size / Dimension
1.60mm L x 1.60mm W

Height (Max)
0.35mm

Base Product Number
LTST-C19

Download datasheets and manufacturer documentation for LITE-ON LTST-C19HE1WT.

Datasheets:

liteoninc-ltstc19he1wt-datasheets-5184.pdf

The Lite-On LTST-C19HE1WT is a discrete LED indication component with an RGB diffused chip in an SMD 0805 package. This component is designed to provide a bright, uniform light output with a wide viewing angle. It is ideal for applications that require a high level of visibility and color differentiation.

Features of the Lite-On LTST-C19HE1WT include:
- High luminous intensity of up to 20 mcd
- Wide viewing angle of up to 120°
- Low power consumption of up to 20 mA
- RoHS compliant
- Operating temperature range of -40°C to +85°C

Applications of the Lite-On LTST-C19HE1WT include:
- Automotive lighting
- Industrial lighting
- Home appliances
- Consumer electronics
- Signage and displays
- Medical equipment
- Telecommunications equipment
