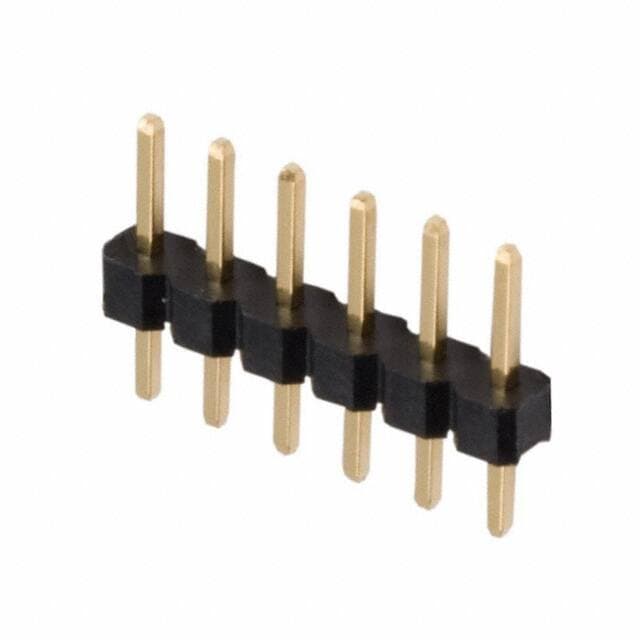

Harwin M22-2510605
Harwin M22-2510605

Harwin M22-2510605

Manufacturer No:

M22-2510605

Manufacturer:

Harwin

Package:

SIL

Description:

M22 Series 1-Row Header, Cuttable Solder Phosphor Bronze Bulk Through Hole Gold Polyamide (PA6T), Nylon 6T 6-Position Board to Board 0.059 1.50mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M22-2510605 information

Harwin M22-2510605 technical specifications, attributes, parameters and parts with similar specifications to Harwin M22-2510605.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • SIL
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Housing Material
  • Nylon
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • M22
  • Published
  • 2009
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header, Cuttable
  • Number of Positions
  • 6
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 650V
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 1A per Contact
  • Orientation
  • Straight
  • Depth
  • 2mm
  • Insulation Height
  • 0.059 1.50mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.079 2.00mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.091 2.30mm
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 1
  • Contact Length - Mating
  • 0.138 3.50mm

Download datasheets and manufacturer documentation for Harwin M22-2510605.

Datasheets:

M22-2510605 Overview


It comes in Header, Cuttable packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the M22 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.In the packaging with the SIL, there is a device enclosed in the package.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
