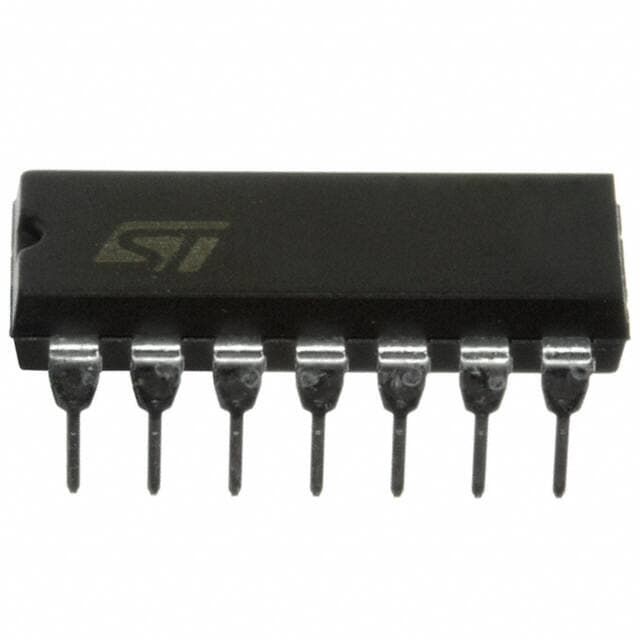

ST M74HC4016B1R

Manufacturer No:

M74HC4016B1R

Manufacturer:

Package:

14-DIP (0.279, 7.10mm)

Description:

14ns, 24ns SPST - NO 120Ohm DUAL Analog Switches BREAK-BEFORE-MAKE M74HC401 14 Pins 100nA 4.5V 14-DIP (0.279, 7.10mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M74HC4016B1R information

ST M74HC4016B1R technical specifications, attributes, parameters and parts with similar specifications to ST M74HC4016B1R.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-DIP (0.279, 7.10mm)

Number of Pins
14

Operating Temperature
-55°C~125°C TA

Packaging
Tube

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

Resistance
120Ohm

Terminal Finish
Matte Tin (Sn)

Subcategory
Multiplexer or Switches

Max Power Dissipation
500mW

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
4.5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
M74HC401

Output
SEPARATE OUTPUT

Pin Count
14

Qualification Status
Not Qualified

Max Supply Voltage
12V

Min Supply Voltage
2V

Operating Supply Current
8μA

Power Dissipation
500mW

Max Supply Current
8μA

Throw Configuration
SPST

Turn On Delay Time
100 ns

Number of Inputs
4

Supply Type
Single

Turn-Off Delay Time
150 ns

-3db Bandwidth
42MHz

On-State Resistance (Max)
120Ohm

Multiplexer/Demultiplexer Circuit
1:1

Off-state Isolation-Nom
50 dB

Current - Leakage (IS(off)) (Max)
100nA

Channel Capacitance (CS(off), CD(off))
1pF 5pF

On-state Resistance Match-Nom
16Ohm

Switch Circuit
SPST - NO

Switch Time (Ton, Toff) (Max)
14ns, 24ns

Channel-to-Channel Matching (ΔRon)
6 Ω

Crosstalk
-50dB @ 1MHz

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
20ns

Download datasheets and manufacturer documentation for ST M74HC4016B1R.

Datasheets:

stmicroelectronics-m74hc4016b1r-datasheets-3772.pdf

M74HC4016B1R Overview

The electronic part can be shipped overseas conveniently because it is packaged in 14-DIP (0.279, 7.10mm). In order to provide high reliability, an advanced packaging method Tube is used. There is an analog multiplexer mounted in position Through Hole. There is 1:1 ratio between the number of multiplexers and demultiplexers. Around -55°C~125°C TA is the extended operating temperature. In total, there are 14 terminations. This electronic part offers high-quality output due to its 1 channels. In the case of a voltage supply of 4.5V volts, the electrical part can be powered up and run. There are 14 pins injected into the electronic part body. The analog switch ics are built using SPST - NO switching circuits. Search with M74HC401 if you are looking for analog multiplexer variants. It has an internal resistance of 120Ohm. The functions of 14 pins can be found in the datasheets. There is a standard Multiplexer or Switches analogue multiplexer here. In normalcircumstances, users should not exceed 12V volts for the multiplexer. Single supply type digital switch with a low cost. 2V is the lowest voltage that should be fed to the electronic electronic part. In order to operate this switch device, it would need a current of 8μA. A voltage of 2V~12V is required to drain this analog switch from a single voltage supply. A digital multiplexer may suffer damage if voltage is applied above 8μA. There are SEPARATE OUTPUT outputs on this analog switch ic. There are 4 inputs to be operated.

M74HC4016B1R Features

1 Channels
Switch Circuit: SPST - NO
8μA Supply Current
-3db Bandwidth: 42MHz

M74HC4016B1R Applications

There are a lot of STMicroelectronics
M74HC4016B1R Analog Switches & Multiplexers ICs applications.

Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
