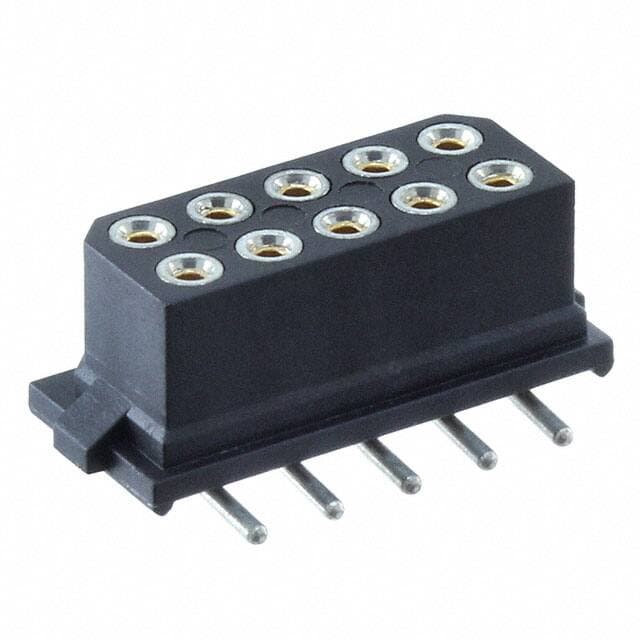

Harwin M80-6811042
Harwin M80-6811042

Harwin M80-6811042

Manufacturer No:

M80-6811042

Manufacturer:

Harwin

Package:

Description:

2 Rows Receptacle Solder Beryllium Copper Surface Mount Tube Gold Polyamide (PA46), Nylon 4/6, Glass Filled 10 Positions Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M80-6811042 information

Harwin M80-6811042 technical specifications, attributes, parameters and parts with similar specifications to Harwin M80-6811042.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Beryllium Copper
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyamide (PA46), Nylon 4/6, Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • Datamate L-Tek
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 10
  • Applications
  • Automotive, General Purpose, Military
  • Number of Rows
  • 2
  • Additional Feature
  • ROHS COMPLIANT
  • HTS Code
  • 8536.69.40.40
  • Fastening Type
  • Locking Ramp
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Female Socket
  • Mixed Contacts
  • NO
  • Total Number of Contacts
  • 10
  • Orientation
  • Straight
  • Insulation Height
  • 0.220 5.60mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.518 inch
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin

Download datasheets and manufacturer documentation for Harwin M80-6811042.

Datasheets:

M80-6811042 Overview


The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.Product number Datamate L-Tek belongs to the Datamate L-Tek Series.Further, there are features such as ROHS COMPLIANT, to name only a few.In addition to Automotive, General Purpose, Military, there are other possible applications for the device.There is a Surface Mount mount on the part.This device operates at a temperature of -55°C~125°C.
