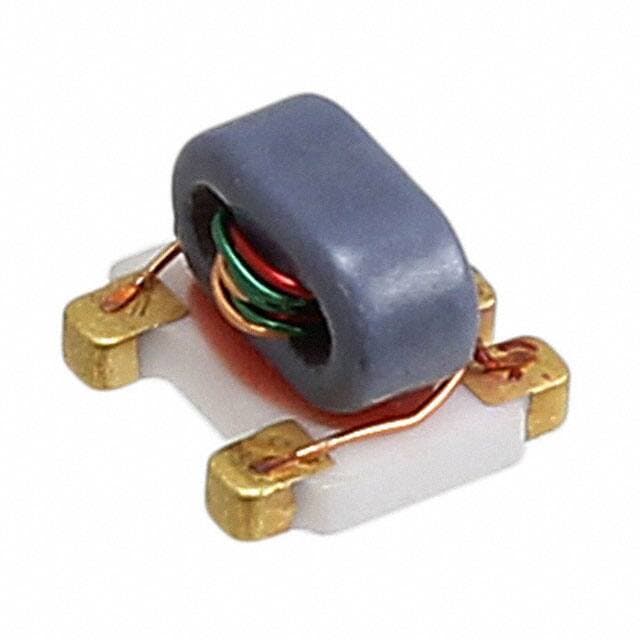

MA/COM MABAES0061

Manufacturer No:

MABAES0061

Manufacturer:

MA/COM

Package:

6-SMD (5 Leads), Flat Lead

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MABAES0061 information

MA/COM MABAES0061 technical specifications, attributes, parameters and parts with similar specifications to MA/COM MABAES0061.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-SMD (5 Leads), Flat Lead

Number of Pins
5

Packaging
Tape & Reel (TR)

Published
2008

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
BREADTH AND HEIGHT DIMENSION INCLUDES TERMINAL ALSO

Power Rating
250mW

Depth
3.81mm

Physical Dimension
L3.81XB2.79XH3.8 (mm)

Max DC Current
240mA

Frequency Range
2MHz~800MHz

Insertion Loss (dB)
3 dB

Transformer Type
RF TRANSFORMER

Turns Ratio - Primary:Secondary
1:2

Insertion Loss (Max)
3.0dB

Cut-off Frequency-Min
2MHz

Impedance - Unbalanced/Balanced
1:4

Height
2.67mm

Length
3.81mm

Width
3.81mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MA/COM MABAES0061.

Description: The MA-COM Balun MABAES0061 is a 1:4 flatpack balun designed for use in a wide range of applications. It has a frequency range of 2MHz to 800MHz and is constructed with 6 surface-mount devices (SMD).

Features:
- Frequency range of 2MHz to 800MHz
- 1:4 impedance ratio
- 6 SMD construction
- Flatpack design
- Low insertion loss
- High isolation
- High return loss

Applications: The MA-COM Balun MABAES0061 is suitable for a variety of applications, including RF and microwave systems, antenna systems, and wireless communication systems. It can be used for impedance matching, signal splitting, and signal combining.
