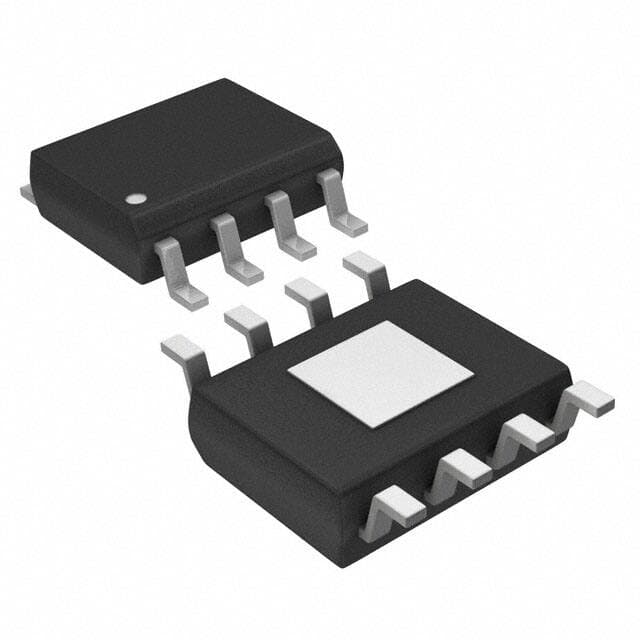

ADI MAX15019AASA+

Manufacturer No:

MAX15019AASA+

Manufacturer:

ADI

Package:

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

Surface Mount Tube Active EAR99 Gate Drivers ICs Non-Inverting 2 125V V 8-SOIC (0.154, 3.90mm Width) Exposed Pad MAX15019 Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX15019AASA+ information

ADI MAX15019AASA+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX15019AASA+.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width) Exposed Pad

Number of Pins
8

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Published
2008

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Termination
SMD/SMT

ECCN Code
EAR99

Terminal Finish
TIN

Subcategory
MOSFET Drivers

Max Power Dissipation
1.9W

Technology
BICMOS

Voltage - Supply
8V~12.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
MAX15019

Pin Count
8

Max Output Current
3A

Nominal Supply Current
190?A

Output Current
3A

Input Type
Non-Inverting

Turn On Delay Time
36 ns

Rise Time
5ns

Fall Time (Typ)
5 ns

Turn-Off Delay Time
36 ns

Rise / Fall Time (Typ)
50ns 40ns

Channel Type
Independent

Number of Drivers
2

Turn On Time
66 ?s

Output Peak Current Limit-Nom
3A

Driven Configuration
Half-Bridge

Gate Type
N-Channel MOSFET

Current - Peak Output (Source, Sink)
3A 3A

High Side Driver
YES

Logic Voltage - VIL, VIH
0.8V 2V

Turn Off Time
66 ?s

High Side Voltage - Max (Bootstrap)
125V

Download datasheets and manufacturer documentation for ADI MAX15019AASA+.

Datasheets:

maximintegrated-max15019aasa-datasheets-9481.pdf

maximintegrated-max5858aecmd-datasheets-5095.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

MAX15019AASA+ Overview

A higher level of flexibility is provided by its 8-SOIC (0.154, 3.90mm Width) Exposed Pad package.A packaging method of Tube is used.2 drivers are incorporated for its configuration.In this case, gate drivers is mounted along the way of Surface Mount.When the supply voltage is 8V~12.6V it is able to demonstrate its superiority.A gate type of N-Channel MOSFET has been used in its design.Temperature range -40°C~150°C TJ is allowed for this device.Mosfet driver accepts input of type Non-Inverting.The configuration is based on 8 terminations.Mosfet driver is possible to find various related parts under Mosfet drivers base part number MAX15019.The mount method is Surface Mount.When the device is designed, it has 8 pins.Specification is for 12V supply voltage operation.In the maximum case, the output current can be limited to 3A.There are several useful electronic components found in its subcategory of MOSFET Drivers.The board contains 8 pins for component connections.A high-side voltage can be set up to 125V (Bootstrap).This device supports a current output of 3A at the output.Based on the maximum power dissipation of 1.9W, it is clear that it is capable of transferring and conducting power losses without becoming overheated.

MAX15019AASA+ Features

Embedded in the Tube package
2 drivers
Employing a gate type of N-Channel MOSFET
8 pins
High-side voltage - Max (Bootstrap) of 125V
Maximum power dissipation of 1.9W

MAX15019AASA+ Applications

There are a lot of Maxim Integrated
MAX15019AASA+ gate drivers applications.

RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
