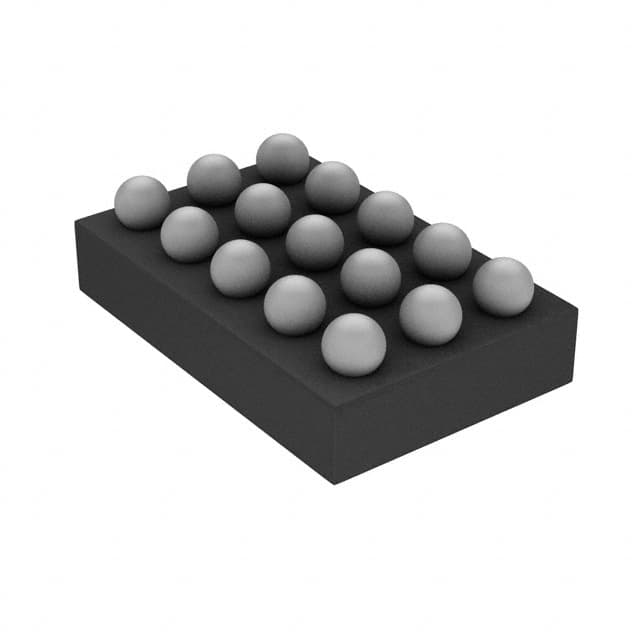

ADI MAX77756BEWL+

Manufacturer No:

MAX77756BEWL+

Manufacturer:

ADI

Package:

15-WFBGA, WLBGA

Description:

3V MAX77756 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1MHz Tube 500mA 15-WFBGA, WLBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAX77756BEWL+ information

ADI MAX77756BEWL+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX77756BEWL+.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
15-WFBGA, WLBGA

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Published
2017

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MAX77756

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
24V

Output Voltage
3.3V

Output Type
Fixed

Voltage - Input (Min)
3V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
500mA

Topology
Buck

Frequency - Switching
1MHz

Synchronous Rectifier
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI MAX77756BEWL+.

Datasheets:

maximintegrated-max77756bewlt-datasheets-3671.pdf

maximintegrated-max77756bewl-datasheets-0329.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

MAX77756BEWL+ Overview

It is designed to provide optimal performance by utilizing the Tube package. As this regulator voltage is equipped with an analog IC of the type SWITCHING REGULATOR, it is a SWITCHING REGULATOR-type voltage regulator. For space-saving purposes, this voltage regulator is available in the 15-WFBGA, WLBGA package. A total of 1 outputs are configured in this voltage regulator. On the output pins of this DC DC switching regulator, there is a Fixed output generated. Surface Mount-mount switching regulator. -40°C~85°C TA should be the operating temperature when voltage regulator is operating. Voltage regulator's switching frequency reaches 1MHz. The voltage regulator can be operated with a voltage as low as 3V as an input voltage. DC DC switching regulator's 500mA output current allows for maximum design flexibility. Voltage regulators' input voltage is limited to 24V. With its peak reflow temperature of NOT SPECIFIED, this voltage regulator is essentially indestructible. In this case, the DC/DC regulator belongs to the family MAX77756. Voltage can be produced at 3.3V volts by voltage regulator.
