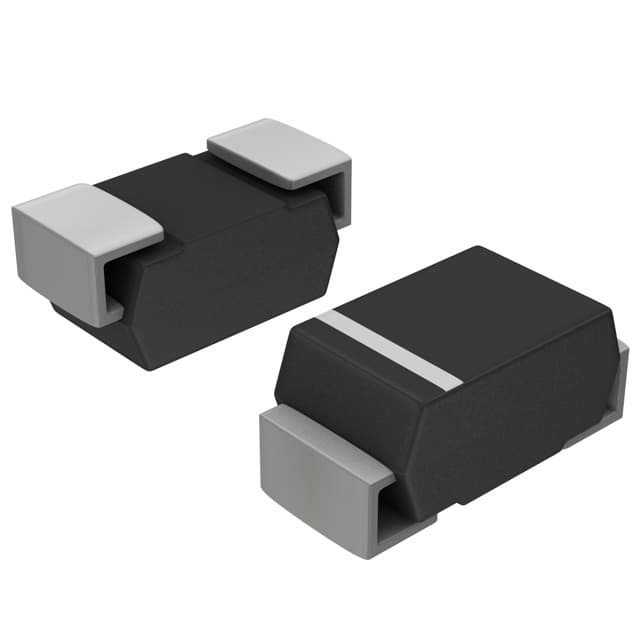

ONSEMI MBRA340T3G

Manufacturer No:

MBRA340T3G

Manufacturer:

ONSEMI

Package:

DO-214AC, SMA

Description:

Schottky Power Rectifier, Surface Mount, 3.0 A, 40 V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBRA340T3G information

ONSEMI MBRA340T3G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MBRA340T3G.

Type
Parameter

Case Outline
403D-02

Container Qty.
5000

Configuration
Single

IO(rec) Max (A)
3

MSL Temp (°C)
260

VRRM Min (V)
40

VF Max (V)
0.45

trr Max (ns)
-

IRM Max (µA)
300

Cj Max (pF)
-

Package Type
SMA-2

MSL Type
1

Container Type
REEL

IFSM Max (A)
100

Download datasheets and manufacturer documentation for ONSEMI MBRA340T3G.

Datasheet:

3c5b3c1d727e5d2a720901dfd48896f0.pdf

Package Drawing:

96b897b3172f0094851a2e64570b622c.pdf

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier's state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.

Application

Polarity Protection

Feature

Compact Surface Mountable Package with J-Bent Leads
Rectangular Package for Automated Handling
Highly Stable Oxide Passivated Junction
Very Low Forward Voltage Drop
Guardring for Stress Protection
All External Surfaces are Corrosion Resistant and Terminal Leads are Readily Solderable
Cathode Lead Indicated by polarity Band
ESD Ratings, Machine Model = C, Human Body Model = 3B
Device Meets MSL 1 Requirements
AEC-Q101 Qualified and PPAP Capable
NRVBA Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
