Manufacturer No:

MBRS1100T3G

Manufacturer:

ONSEMI

Package:

DO-214AA, SMB

Description:

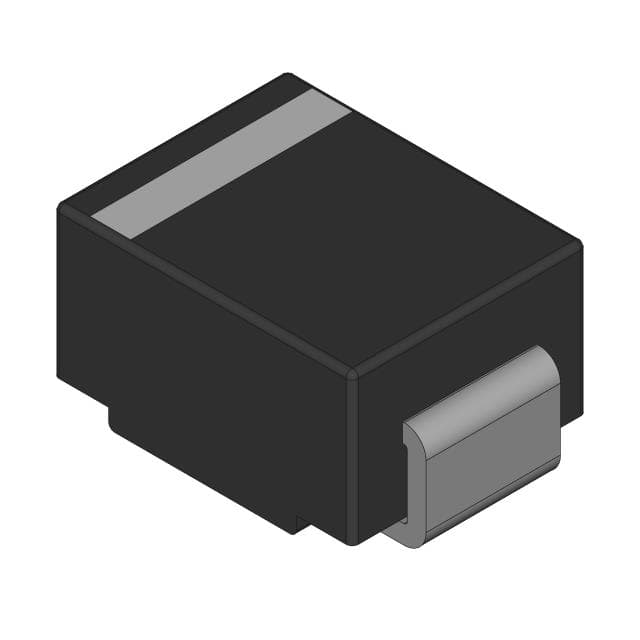

1.0 A, 100 V, Schottky Power Rectifier, Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBRS1100T3G information

ONSEMI MBRS1100T3G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MBRS1100T3G.

  • Type
  • Parameter
  • MSL Type
  • 1
  • Configuration
  • Single
  • Package Type
  • SMB-2
  • VRRM Min (V)
  • 100
  • IRM Max (µA)
  • 500
  • Container Qty.
  • 2500
  • IFSM Max (A)
  • 50
  • trr Max (ns)
  • -
  • Cj Max (pF)
  • -
  • MSL Temp (°C)
  • 260
  • Container Type
  • REEL
  • VF Max (V)
  • 0.75
  • IO(rec) Max (A)
  • 1
  • Case Outline
  • 403A-03

Download datasheets and manufacturer documentation for ONSEMI MBRS1100T3G.

Datasheet:

Package Drawing:

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier's state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.

Feature

  • Small Compact Surface Mountable Package with J-Bend Leads
  • Rectangular Package for Automated Handling
  • Highly Stable Oxide Passivated Junction
  • High Blocking Voltage - 100 Volts
  • 150°C Operating Junction Temperature
  • Guardring for Stress Protection

    Mechanical Characteristics:
  • Case: Epoxy, Molded
  • Weight: 95 mg (approximately)
  • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
  • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
  • Shipped in 12 mm Tape and Reel, 2500 units per reel
  • Cathode Polarity Band
  • Markings:
    MBRS190T3: B19
    MBRS1100T3: B1C
  • All Packages are Pb-Free
  • AEC-Q101 Qualified and PPAP Capable
  • SBRS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
