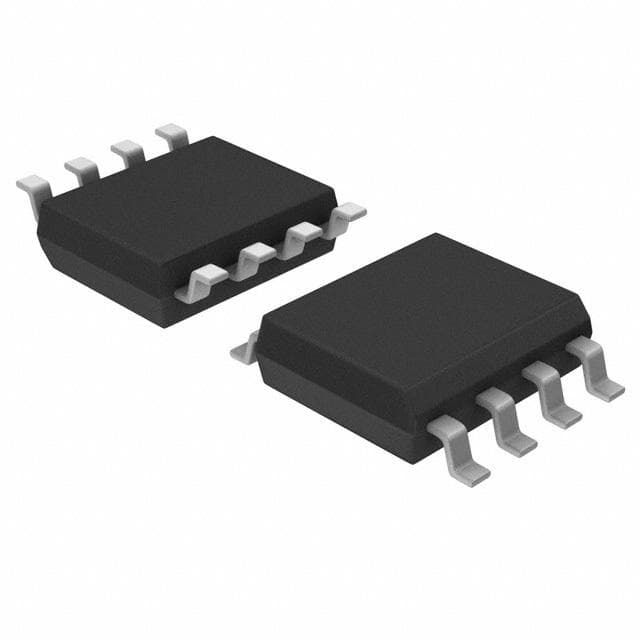

Renesas MC100ES8011PEFR2

Manufacturer No:

MC100ES8011PEFR2

Manufacturer:

Renesas

Package:

SOIC

Description:

1 Circuit 625MHz 3.3V Clock Buffer DUAL 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC100ES8011PEFR2 information

Renesas MC100ES8011PEFR2 technical specifications, attributes, parameters and parts with similar specifications to Renesas MC100ES8011PEFR2.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Packaging
Tape & Reel

Published
2013

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
ECL

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Number of Outputs
4

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Propagation Delay
940 ps

Quiescent Current
105mA

Frequency (Max)
625MHz

Output Characteristics
3-STATE

Input
PECL

Logic IC Type
LOW SKEW CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.02 ns

Width
3.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas MC100ES8011PEFR2.

Datasheets:

integrateddevicetechnology-mc100es8011pefr2-datasheets-1094.pdf

MC100ES8011PEFR2 Overview

There is a case available for the cut smart buffer in SOIC. This package is packaged in the form of a Tape & Reel. For normal operation, 625MHz is the maximum value. It has 8 terminations in it, which means that it is terminated. Supply voltages of 3.3V are capable of achieving high efficiency. It has been positioned in the way of Surface Mount. There are 8 pins on the clock buffer. During operation, 8 pins are used. The clock switch operates at a minimum working temperature of -40°C in order to maintain reliability. It is possible to achieve stable operation by setting the maximum operating temperature to 85°C. The circuit uses a logic IC with a value of LOW SKEW CLOCK DRIVER as the input. As a default, it is set to output 4. A maximum supply voltage of 3.465VV can be applied to it. Depending on the type of source voltage, it can run with a voltage as low as 3.135V. When the supply voltage is at 3.3V, the efficiency will be highest. The clock divider consumes 105mA quiescent current, and it is unaffected by external factors.

MC100ES8011PEFR2 Features

8 terminations
logic IC type of LOW SKEW CLOCK DRIVER

MC100ES8011PEFR2 Applications

There are a lot of Integrated Device Technology (IDT)
MC100ES8011PEFR2 Clock Buffers & Drivers applications.

Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
