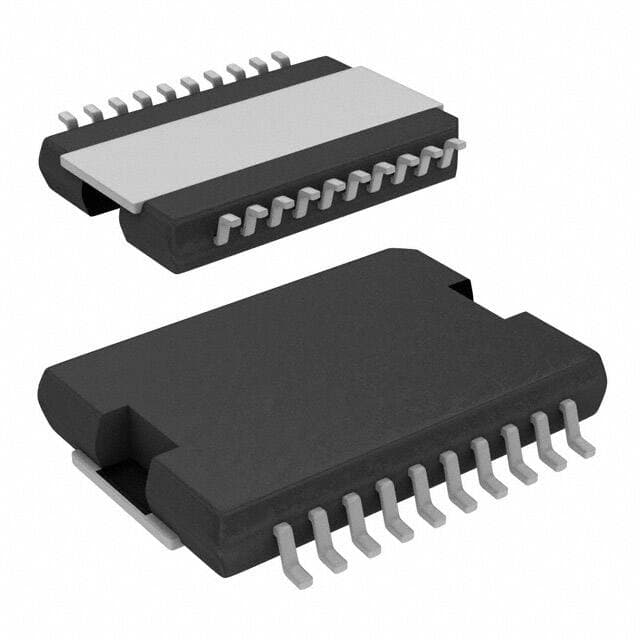

NXP MC33186VW2R2

Manufacturer No:

MC33186VW2R2

Manufacturer:

NXP

Package:

20-SOIC (0.433, 11.00mm Width) Exposed Pad

Description:

Tape & Reel (TR) 20-SOIC (0.433, 11.00mm Width) Exposed Pad Logic 5V~28V Surface Mount -40°C~150°C TJ DC Motors, General Purpose, Solenoids Half Bridge (2) Inductive 5V~28V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC33186VW2R2 information

NXP MC33186VW2R2 technical specifications, attributes, parameters and parts with similar specifications to NXP MC33186VW2R2.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-SOIC (0.433, 11.00mm Width) Exposed Pad

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2004

Feature
Status Flag

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Applications
DC Motors, General Purpose, Solenoids

Technology
Bi-CMOS

Voltage - Supply
5V~28V

Base Part Number
MC33186

Interface
Logic

Output Configuration
Half Bridge (2)

Voltage - Load
5V~28V

Current - Output / Channel
5A

Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO

Rds On (Typ)
150m ?

Load Type
Inductive

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC33186VW2R2.

Datasheets:

nxpusainc-mc33186vw1-datasheets-0740.pdf

MC33186VW2R2 Overview

In order to package H bridge, Tape & Reel (TR) is used.H bridge is included in the 20-SOIC (0.433, 11.00mm Width) Exposed Pad package as a cost-saving measure.Based on the supply voltage of 5V~28V, improved reliabilbridge drivery can be ensured.H bridge circuit is put into place in the way of Surface Mount.Motor driver H bridge is possible for -40°C~150°C TJ to operate normally at motor driver H bridges operating temperature.There are lots of uses for H bridge motor driver, including DC Motors, General Purpose, Solenoids.Full bridge also has a number of specific characteristics, including Status Flag.The base H bridge ic number of MC33186 allows you to find more related H bridge ics by using that number.

MC33186VW2R2 Features

Available in 20-SOIC (0.433, 11.00mm Width) Exposed Pad Package / Case
Operating Temperature at the range of Surface Mount
Interface IC Type : MC33186

MC33186VW2R2 Applications

There are a lot of NXP USA Inc.
MC33186VW2R2 Full Bridge Drivers, Half-Bridge Drivers applications.

Desktop Computers
V-Core
Non-V-Core
Workstations
High-Current DC-DC Point-of-Load Converters
Networking Microprocessor Voltage Regulators
Telecom Microprocessor
Voltage Regulators
Small Form-Factor Voltage Regulator Modules
Notebook Computers
