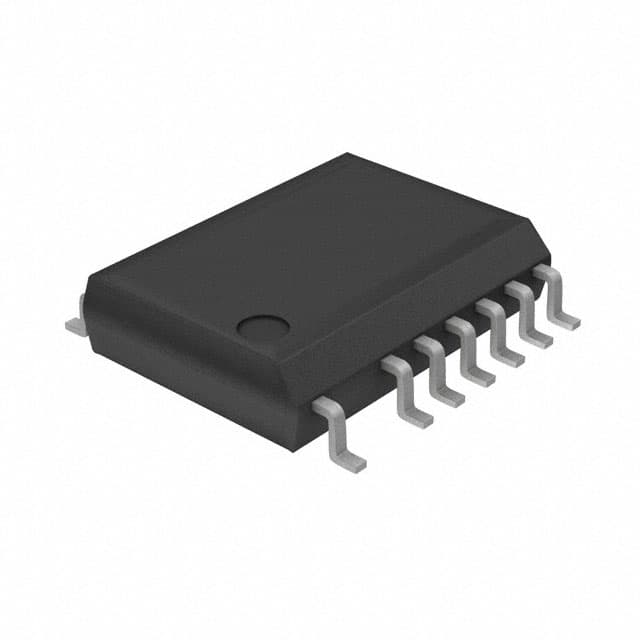

ONSEMI MC33362DWG

Manufacturer No:

MC33362DWG

Manufacturer:

ONSEMI

Package:

16-SOIC (0.295, 7.50mm Width), 13 Leads

Description:

13 Terminations 9.5V~40V 13 Pin MC33362 AC to DC power converter 67.5kHz~285kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC33362DWG information

ONSEMI MC33362DWG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC33362DWG.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.295, 7.50mm Width), 13 Leads

Number of Pins
13

Operating Temperature
-25°C~150°C TJ

Packaging
Tube

Published
2005

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
13

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MC33362

Pin Count
13

Qualification Status
Not Qualified

Input Voltage-Nom
20V

Analog IC - Other Type
SWITCHING REGULATOR

Output Current
2A

Voltage - Supply (Vcc/Vdd)
9.5V~40V

Control Features
Frequency Control

Topology
Flyback, Forward

Control Mode
VOLTAGE-MODE

Frequency - Switching
67.5kHz~285kHz

Control Technique
PULSE WIDTH MODULATION

Nominal Input Voltage
400V

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Duty Cycle
50%

Output Isolation
Isolated

Voltage - Breakdown
500V

Voltage - Start Up
14.5V

Height
2.4mm

Length
10.45mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI MC33362DWG.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

MC33362DWG Overview

It is embedded in package 16-SOIC (0.295, 7.50mm Width), 13 Leads .You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -25°C~150°C TJ °C in order to achieve its full performance.Analog IC type SWITCHING REGULATOR is utilized in this AC DC converter.As a result, the switching frequency reaches 67.5kHz~285kHz .A range of 9.5V~40V supply voltages (Vcc/Vdd) can be used.There have been 13 terminations of this program.Approximately 13 pins are present on the ac/dc converter.The pins of the ac-dc converter total to 13 .The ac dc converters is suitable for mounting by Surface Mount .The MC33362 family allows you to search for similar acdc converters.There are a ac to dc conversions included in Switching Regulator or Controllers .Currently, the output current is set to 2A .This AC/DC converter produces a voltage of 6.5V as its output.

MC33362DWG Features

Packaged with 16-SOIC (0.295, 7.50mm Width), 13 Leads
Switching Frequency at 67.5kHz~285kHz
With 13 pins
Output Current at 2A

MC33362DWG Applications

There are a lot of ON Semiconductor
MC33362DWG AC DC Converters applications.

Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
