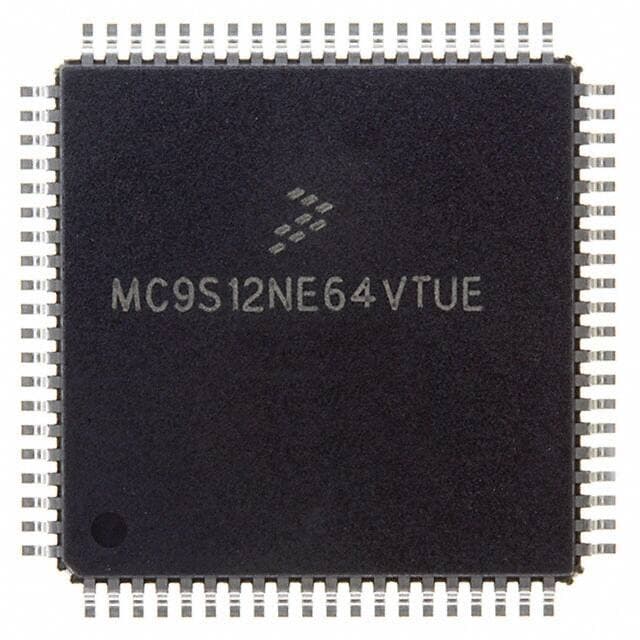

NXP MC9S12NE64VTUE

Manufacturer No:

MC9S12NE64VTUE

Manufacturer:

NXP

Package:

80-TQFP Exposed Pad

Description:

64KB 64K x 8 FLASH HCS12 16-Bit Microcontroller HCS12 Series MC9S12NE64 80-TQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC9S12NE64VTUE information

NXP MC9S12NE64VTUE technical specifications, attributes, parameters and parts with similar specifications to NXP MC9S12NE64VTUE.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
80-TQFP Exposed Pad

Supplier Device Package
80-TQFP-EP (14x14)

Operating Temperature
-40°C~105°C TA

Packaging
Tray

Series
HCS12

Published
2004

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Base Part Number
MC9S12NE64

Oscillator Type
Internal

Number of I/O
38

Speed
25MHz

RAM Size
8K x 8

Voltage - Supply (Vcc/Vdd)
2.375V~3.465V

Core Processor
HCS12

Peripherals
POR, PWM, WDT

Program Memory Type
FLASH

Core Size
16-Bit

Program Memory Size
64KB 64K x 8

Connectivity
EBI/EMI, Ethernet, I2C, SCI, SPI

Data Converter
A/D 8x10b

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC9S12NE64VTUE.

Datasheets:

nxpusainc-mc9s12ne64vtu-datasheets-0243.pdf

PCN Packaging:

nxpusainc-mbc13720nt1-pcnpackaging-6034.pdf

MC9S12NE64VTUE Description

The MC9S12NE64VTUE is a 112-/80-pin cost-effective, low-end connectivity applications MCU family. The MC9S12NE64VTUE is composed of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 64K bytes of FLASH EEPROM, 8K bytes of RAM, Ethernet media access controller(EMAC) with integrated 10/100 Mbps Ethernet physical transceiver (EPHY), two asynchronous serial communications interface modules (SCI), a serial peripheral interface (SPI), one inter-IC bus (IIC), a 4-channel/16-bit timer module (TIM), an 8-channel/10-bit analog-to-digital converter (ATD), up to 21 pins available as keypad wakeup inputs (KWU), and two additional external asynchronous interrupts.

MC9S12NE64VTUE Features

16-bit HCS12 core

Wakeup interrupt inputs

Analog-to-digital converter (ATD)

Two asynchronous serial communications interface (SCI)

Ethertype filter

Loopback mode

Two receive and one transmit Ethernet buffer interfaces

MC9S12NE64VTUE Applications

Communications equipment

Wireless infrastructure

Industrial

Appliances

Enterprise systems

Datacenter & enterprise computing
