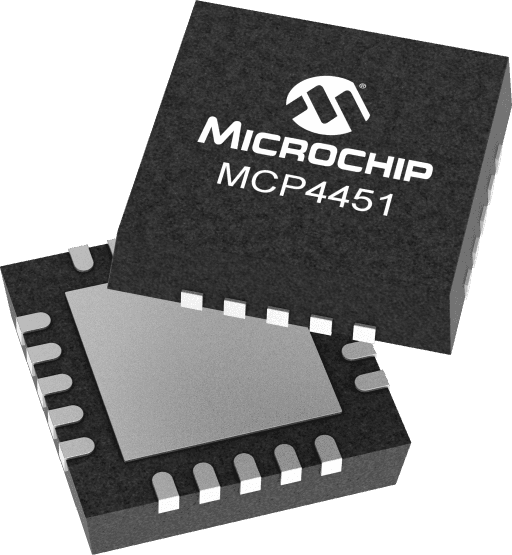

Microchip MCP4451-103E/ST

Manufacturer No:

MCP4451-103E/ST

Manufacturer:

Microchip

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

Quad-channel, 8-bit, volatile digital potentiometer with I2C interface.AEC-Q100 qualified.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP4451-103E/ST information

Microchip MCP4451-103E/ST technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP4451-103E/ST.

Type
Parameter

Resolution (Number of Taps)
257

Resistance (ohms) k
5, 10, 50, 100

Download datasheets and manufacturer documentation for Microchip MCP4451-103E/ST.

The MCP4451 devices are volatile, 8-bit (257 wiper steps) digital potentiometers that are programmed/reprogrammed through an I2C™Compatible compatible interface. The MCP4451 family of devices are available with resistor values of 5KΩ, 10KΩ, 50KΩ and 100KΩ.

We welcome questions, comments and recommendations for improvements to this page - please contact us at: [email protected] if you have any; please mention the part number in the email subject header.

Quad Resistor Network
Potentiometer or Rheostat configuration options
7-bit – 128 Resistors (129 Taps)
8-bit: 256 Resistors (257 Taps)
5 kohm
10 kohm
50 kohm
100 kohm
Zero-scale to Full-scale Wiper Operation
Low Wiper Resistance – 75 ohm typical
Absolute (Rheostat) – 50 ppm typical (0°-70°C)
Ratiometric (Potentiometer) – 15 ppm typical
100 kHz
400 kHz
3.4 MHz
High-Speed Read/Write to wiper
Read/Write to EEPROM
Write Protect to be enabled/disable
WiperLock to be enabled/disabled
Resistor Network Terminal Disconnect Feature via Terminal Control (TCON) Register
Reset Input Pin
Hardware Write Protect (WP) Control pin
Software Write Protect (WP) Configuration bit
Brown-out Reset Protection – 1.5V typical
Serial Interface Inactive Current – 2.5 uA typical
High-Voltage Tolerant Digital Inputs Up to 12.5V
Supports Split Rail Applications
Internal Weak Pull-up on All Digital Inputs, except SCL and SDA
2.7V to 5.5V - Device Characteristics Specified
1.8V to 5.5V - Device Operation
Wide Bandwidth (-3 dB) Operation – 2 MHz typical for 5.0 kohm Device
Extended Temperature Range (-40°C to +125°C)
Package Types: 4x4 QFN-20 and TSSOP-20
AEC-Q100 Grade 1 quarlified
