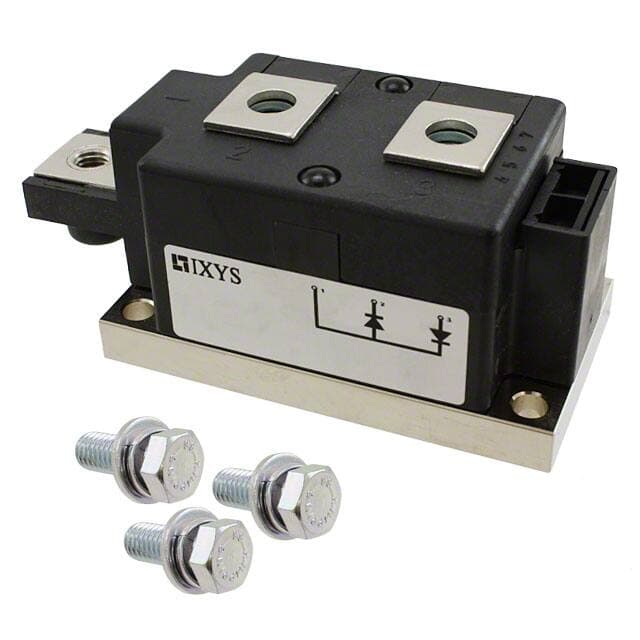

LITTELFUSE MDD255-12N1
LITTELFUSE MDD255-12N1

LITTELFUSE MDD255-12N1

Manufacturer No:

MDD255-12N1

Manufacturer:

LITTELFUSE

Package:

Y1-CU

Description:

Standard Rectifier Diode 1 Pair Series Connection Standard Recovery >500ns, > 200mA (Io) 270A 1.2kV-DC 2-Element Y1-CU Chassis Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MDD255-12N1 information

LITTELFUSE MDD255-12N1 technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE MDD255-12N1.

  • Type
  • Parameter
  • Factory Lead Time
  • 28 Weeks
  • Mount
  • Chassis Mount, Screw
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Y1-CU
  • Number of Pins
  • 3
  • Diode Element Material
  • SILICON
  • Packaging
  • Bulk
  • Published
  • 2004
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Terminal Position
  • UPPER
  • Terminal Form
  • UNSPECIFIED
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • MDD255
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 2
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 30mA @ 1200V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.4V @ 600A
  • Case Connection
  • ISOLATED
  • Application
  • GENERAL PURPOSE
  • Voltage - DC Reverse (Vr) (Max)
  • 1200V
  • Forward Voltage
  • 1.4V
  • Max Reverse Voltage (DC)
  • 1.2kV
  • Average Rectified Current
  • 270A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 30mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.2kV
  • Peak Non-Repetitive Surge Current
  • 10.2kA
  • Non-rep Pk Forward Current-Max
  • 9500A
  • Reverse Voltage
  • 1.2kV
  • Diode Configuration
  • 1 Pair Series Connection
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE MDD255-12N1.

Datasheets:

MDD255-12N1 Overview


In the case of 1.4V forward voltage, the device will operate.Powered by reverse voltage, this device has a peak voltage of 30mA.

MDD255-12N1 Features


1.4V forward voltage
a peak voltage of 30mA
a reverse voltage peak of 30mA


MDD255-12N1 Applications


There are a lot of IXYS
MDD255-12N1 applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
