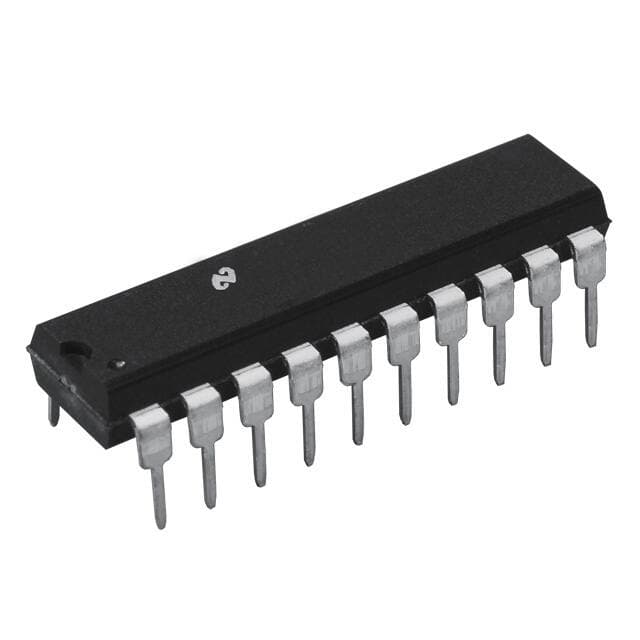

TI MF10ACN

Manufacturer No:

MF10ACN

Manufacturer:

Package:

20-DIP (0.300, 7.62mm)

Description:

Tube Active Active Filters Obsolete 20 Non-RoHS Compliant DUAL

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MF10ACN information

TI MF10ACN technical specifications, attributes, parameters and parts with similar specifications to TI MF10ACN.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
20-DIP (0.300, 7.62mm)

Packaging
Tube

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Type
Active

Technology
CMOS

Voltage - Supply
±9V~14V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
5V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MF10

Pin Count
20

Qualification Status
Not Qualified

Operating Temperature (Max)
70°C

Supply Voltage-Max (Vsup)
6V

Power Supplies
+-5V

Temperature Grade
COMMERCIAL

Nominal Supply Current
8mA

Supply Current-Max (Isup)
10mA

Filter Type
Universal Switched Capacitor

Neg Supply Voltage-Nom (Vsup)
-5V

Neg Supply Voltage-Max (Vsup)
-6V

Filter Order
4th

Frequency - Cutoff or Center
200kHz

Neg Supply Voltage-Min (Vsup)
-4V

Number of Filters
2

Transfer Characteristics
RESISTOR PROGRAMMABLE

Height Seated (Max)
5.08mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI MF10ACN.

Datasheets:

texasinstruments-mf10ccnnopb-datasheets-2798.pdf

MF10ACN Overview

In a 20-DIP (0.300, 7.62mm) package, it is packaged.A Tube package contains it.Using Through Hole mounting, the gadget can be mounted.There is a filter type Universal Switched Capacitor associated with this part.This device should work with a power source of ±9V~14V.Filter consists of a total of 20 pins.In the device's best component, there is a MF10.Cutoff or center frequency is 200kHz for the device.When NOT SPECIFIED is reached, the peak reflow temperature has been reached.In order to power the component at all times, a source of 5V is required.This is the figure of the filters.Filter is at 6V that the maximum supply voltage (Vsup) reaches Filters maximum value.A +-5V supply is present in the device.70°C is currently the highest working temperature.Vsup must be greater than 4V for the supply voltage.A maximum supply temperature of 10mA is capable of being handled by this device.The Through Hole mount comes with one that is included in the package.There is a Active type part here.

MF10ACN Features

Supply voltage of 5V
Mount of Through Hole

MF10ACN Applications

There are a lot of Texas Instruments
MF10ACN active filters applications.

Radar/Sonar
Adaptive Filters
Echo Cancellation
Complex Multiply-Add
Sample Rate Converters
Digital Down Conversion
D/A and A/D pre/post Filtering
Tuning Bandwidth Expansion for HSP45116 and HSP45106
Quadrature, Complex Flterlng
Image Processing
