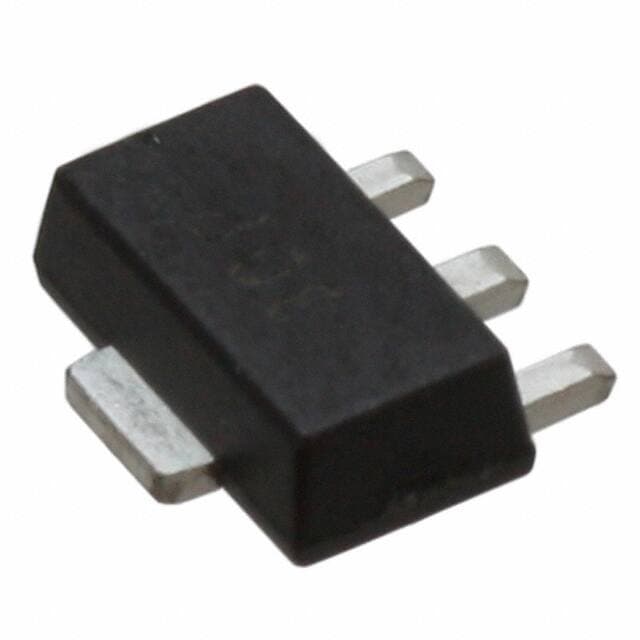

BROADCOM MGA-31189-TR1G

Manufacturer No:

MGA-31189-TR1G

Manufacturer:

BROADCOM

Package:

TO-243AA

Description:

21dB General Purpose WIDE BAND MEDIUM POWER Tape & Reel (TR) 50MHz~2GHz 5V P1dB:24dBm 2dB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MGA-31189-TR1G information

BROADCOM MGA-31189-TR1G technical specifications, attributes, parameters and parts with similar specifications to BROADCOM MGA-31189-TR1G.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Surface Mount

Package / Case
TO-243AA

Surface Mount
YES

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
3

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Additional Feature
LOW NOISE

HTS Code
8542.33.00.01

Subcategory
RF/Microwave Amplifiers

Technology
GAAS

Voltage - Supply
5V

Number of Functions
1

Construction
COMPONENT

Reach Compliance Code
compliant

Frequency
50MHz~2GHz

Power Supplies
5V

Test Frequency
900MHz

Current - Supply
111mA

RF/Microwave Device Type
WIDE BAND MEDIUM POWER

RF Type
General Purpose

Input Power-Max (CW)
25dBm

Characteristic Impedance
50Ohm

Noise Figure
2dB

P1dB
24dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BROADCOM MGA-31189-TR1G.

PCN Obsolescence/ EOL:

broadcomlimited-adet5000tr1-pcnobsolescenceeol-5252.pdf

PCN Packaging:

broadcomlimited-adet5000tr1-pcnpackaging-5254.pdf

MGA-31189-TR1G Overview

An RF Amplifier with a cost-effective RF/Microwave device type of WIDE BAND MEDIUM POWER.A RF type of General Purpose is provided by the RF amplifier.Using advanced packaging techniques Tape & Reel (TR), high reliability is ensured.The RF power Amplifier has been packed in TO-243AA for convenient overseas shipping.You should mount Amplifiers RF in the way of Surface Mount.5V voltage is available from the Amplifiers RF.RF Amp has the following additional features: LOW NOISE1 functions are available in total for the RF Amplifier.There is a supply RF Amplifiers' current called 111mA that is used to operate it.A variety of functions can be performed on 3 terminations.Specially, RF Amplifier corresponds to type RF/Microwave Amplifiers.

MGA-31189-TR1G Features

WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type General Purpose
5V voltage
111mA current

MGA-31189-TR1G Applications

There are a lot of Broadcom Limited
MGA-31189-TR1G RF Amplifiers applications.

GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
Automated test equipment
RF/IF gain control
Microwave Radios
