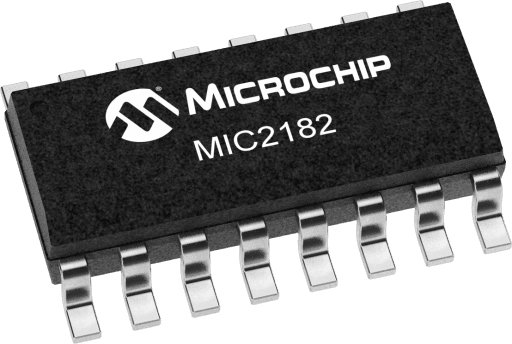

Microchip MIC2182YM

Manufacturer No:

MIC2182YM

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

High Efficiency Synchronous Buck Controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2182YM information

Microchip MIC2182YM technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2182YM.

Type
Parameter

Current Limit / Short Circuit Protection
Yes

Max Duty Cycle (%)
0.86

Enable Pin
Yes

External Clock Sync
Yes

Input UVLO Typ (V)
2.5

Internal Voltage Bias
Yes

Iq Off (µA)
0.1

Input Voltage Max
32

Output Voltage Max
6

Input Voltage Min
4.5

Output Voltage Min
1.25

Operating Supply Current (mA)
1.6

PFM, Discontinuous, Hyperlight load, or Skip Mode
Yes

Package
16/SOP. 16/SSOP

Soft Start
1

Supported Outputs
1

Supported Topologies
Sync. Buck

Typical Tolerance (%)
±1

Download datasheets and manufacturer documentation for Microchip MIC2182YM.

Application Notes:

df9006036c64a6615f332ff1171dd1ad.pdf

6401ee655a234640c8c1a02cbcbbc2ec.pdf

Data Sheets:

1594fc578bd34ce064c6c2e26ff6da1d.pdf

MIC2182 is a synchronous buck (step-down) switching regulator controller. An all N-Channel synchronous architecture and powerful output drivers allow up to a 20A output current capabilty. The PWM and skip-mode control scheme allows efficiency to exceed 95% over a wide range of load current, making it ideal for battery powered applications, as well as high current distributed power supplies.

The MIC2182 operates from a 4.5V to 32V input and can operate with a maximum duty cycle of 86% for use in low-dropout conditions. It also features a shutdown mode that reduces quiescent current to 0.1µA.

The MIC2182 achieves high efficiency over a wide output current range by automatically switching between PWM and skip mode. Skip-mode operation enables the converter to maintain high efficiency at light loads by turning off circuitry pertaining to PWM operation, reducing the no-load supply current from 1.6mA to 600µA. The operating mode is internally selected according to the output load conditions. Skip mode can be defeated by pulling the PWM pin low which reduces noise and RF interference.

The MIC2182 is available in a 16-pin SOP (small-outline package) and SSOP (shrink small-outline package) with an operating range from -40°C to +85°C.

4.5V to 32V Input voltage range
1.25V to 6V Output voltage range
95% efficiency
300kHz oscillator frequency
Current sense blanking
5? impedance MOSFET Drivers
Drives N-Channel MOSFETs
600µA typical quiescent current (skip-mode)
Logic controlled micropower shutdown (IQ <0.1µA)
Current-mode control
Cycle-by-cycle current limiting
Built-in undervoltage protection
Adjustable undervoltage lockout
Easily synchronizable
Precision 1.245V reference output
0.6% total regulation
16-pin SOP and SSOP packages
Frequency foldback overcurrent protection
Sustained short-circuit protection at any input voltage
20A output current capability
